Trailed atomizer Standard

atomizador arrastrado estandar

Standard equipment

Chassis in structural steel and cold-folded sheet.
Polyester powder paint qualicoat.
Extensible fixed lance.
Wheels 10.0/75-15.3” in 1000 L and 2000 L as standard.
Wheels 11.5/80-15,3” in 3000 L as standard.
Adjustable support wheel.
Tank in polyethylene.
Hands-washing tank.
Circuit washing tank
Lights kit
Alfa high pressure control.
APPROVED TO CIRCULATE BY PUBLIC ROAD

BLOCK 1A - Basic atomizer (without brakes and with parking blocks)

CODE	MODEL
1061020002	TRAILED ATOMIZER 1.000 L STANDARD SF
1061020004	TRAILED ATOMIZER 1.500 L STANDARD SF
1061020006	TRAILED ATOMIZER 2.000 L STANDARD SF
1061020008	TRAILED ATOMIZER 3.000 L STANDARD SF

Note: standard models do not carry mudguard or side trays atomizer as standard.

BLOCK 1B - Basic atomizer (with hydraulic brake and load regulating valve)

CODE	MODEL
1061020001	TRAILED ATOMIZER 1.000 L STANDARD SH
1061020003	TRAILED ATOMIZER 1.500 L STANDARD SH
1061020005	TRAILED ATOMIZER 2.000 L STANDARD SH
1061020007	TRAILED ATOMIZER 3.000 L STANDARD SH
1061020009	TRAILED ATOMIZER 4.000 L STANDARD SH

BLOCK 2 - PUMPS

CODE	MODEL	N. MEMBRANES	N. PISTONS	L/m	Bar
2PUBGA0025	PUMP UDOR DELTA 75	3		76	40
2PUBGA0026	PUMP UDOR DELTA 100	3		97	40
2PUBGA0046	PUMP UDOR DELTA 160	4		169	40
2PUBGA0028	PUMP UDOR OMEGA 135	3		137	50
2PUBGA0029	PUMP UDOR OMEGA 170	4		175	50
2PUBGA0033	PUMP UDOR GAMMA 75		3	68	50
2PUBGA0030	PUMP UDOR GAMMA 105		3	109	60
2PUBGA0016	PUMP UDOR GAMMA 125		3	134	60
2PUBGA0044	PUMP UDOR GAMMA 155		3	155	60

BLOCK 3 - AIR FANS

CODE	MODEL	NUM. SPEEDS	MATERIAL *	Ø SHOVEL	JETS	POWER TRACTOR
2PUTBA0008	AIR FAN T-740 TORPEDO	1	P.E + GV	740	12	55CV
2PUTBA0002	AIR FAN T-820 TORPEDO	2	P.E + GV	800	12	65 CV
2PUTBA0009	AIR FAN T-820 INVERTER	2	INOX + GV	820	28	65 CV
2PUTBA0010	AIR FAN T-920 ANDALUCIA	2	GV	920	16	75 CV
2PUTBA0012	AIR FAN T-920 CITRUS SPECIAL	2	INOX + GV	920	28	75 CV
2PUTBA0014	AIR FAN T-920 INVERTER	2	INOX + GV	920	14	75 CV
2PUTBA0000	AIR FAN T-920 TORRETA OLIVES GALV	2	GV	920	18	80 CV
2PUTBA0011	AIR FAN T-920 TORRETA OLIVES INOX	2	INOX + GV	920	18	81 CV
2PUTBA0013	AIR FAN T-1.060 CITRUS SPECIAL	2	INOX + GV	1060	28	95 CV

* P.E.= Polyethylene GV= Galvanized INOX=Inox

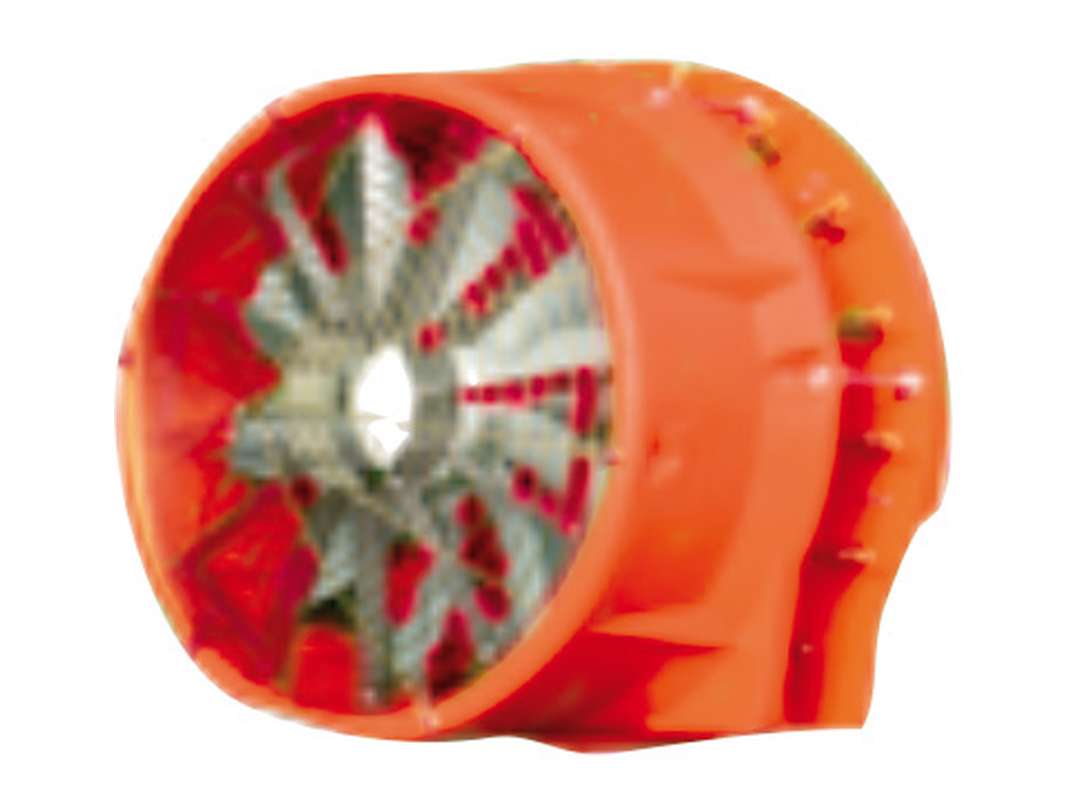

Grupo aire t 820 torpedo 1

Grupo aire t 920 andalucia

Grupo aire t 920 esp. citricos

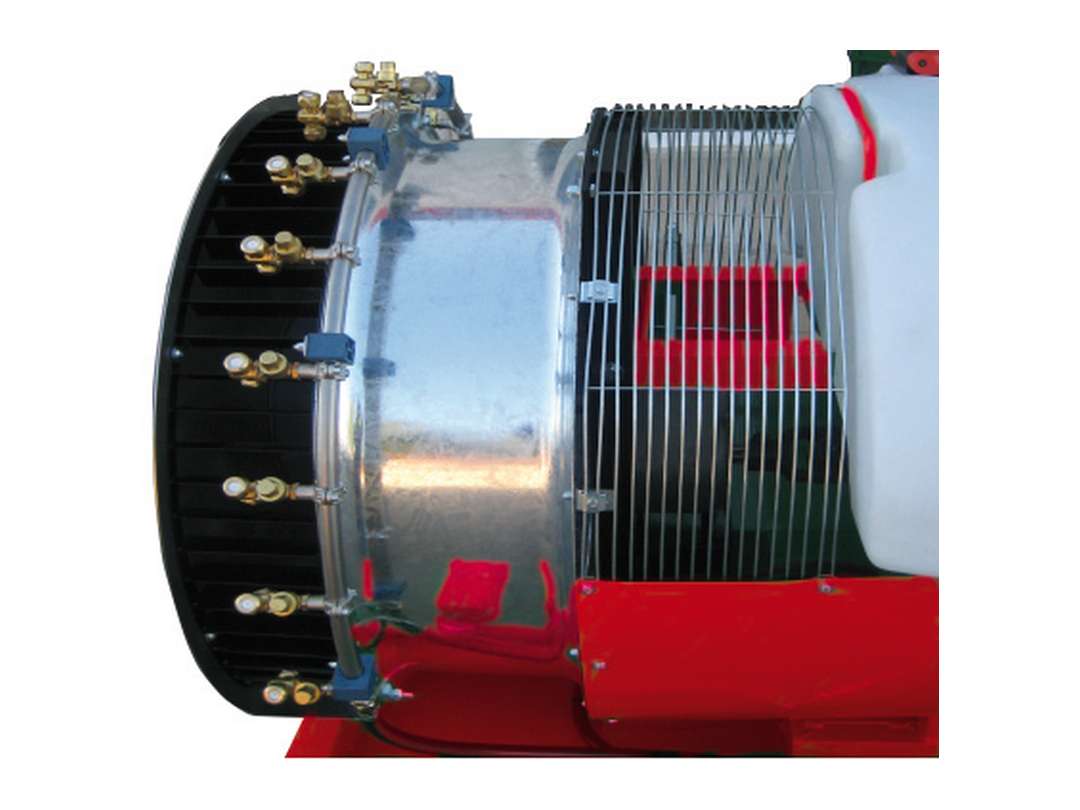

Grupo aire t 920 inverter 1

Grupo aire t 920 torreta olivos 1

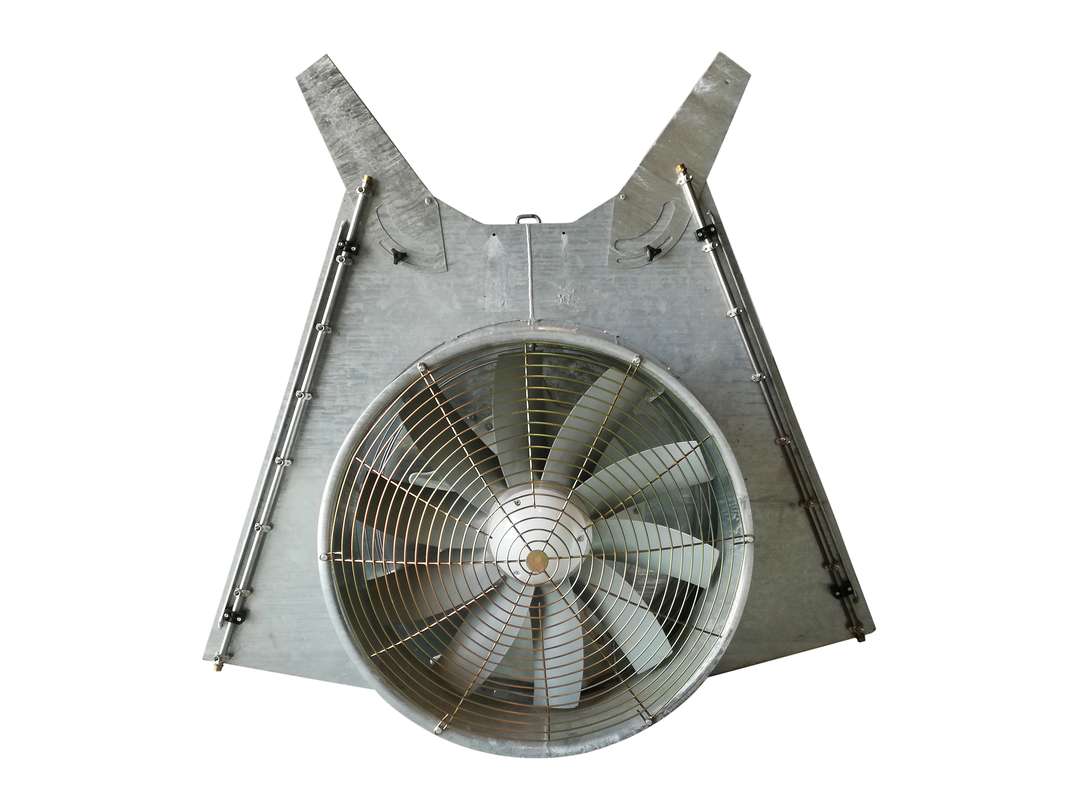

torreta olivos galvanizada t 920 1

Options

Wheels
Electrical control 2 way with download
Bravo 180S 2 ways with Orion flow meter
Homocinetic transmission
Approved V-directional launch
Product mixing tank (integrated)
Leaf spring suspension on chassis
Guideline for vineyard and high fruits with ailerons
Long vineyard ailerons with 2 jets on each side
Guideline for vineyard for T-600, T-700 and T-740 air fans
Approved V-directional launch
Electrical control increase 2-way with volumetrics
Sonar for atomizer
Skirt anti leaves
Side tray atomizer 2000 y 3000 L
“V” deflector
Upper rack

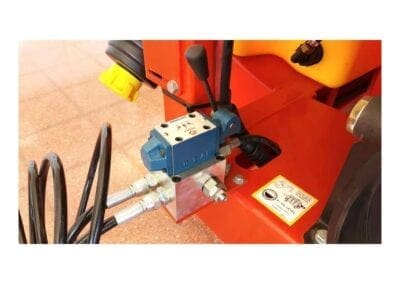

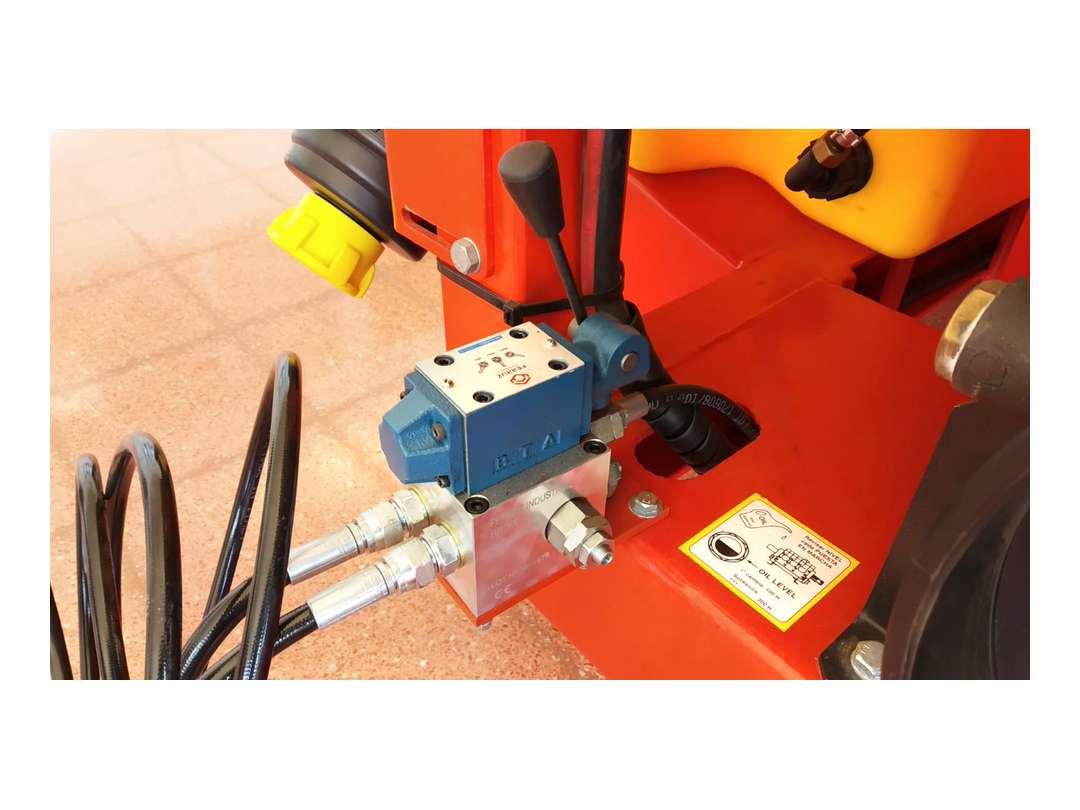

valvula reguladora de carga

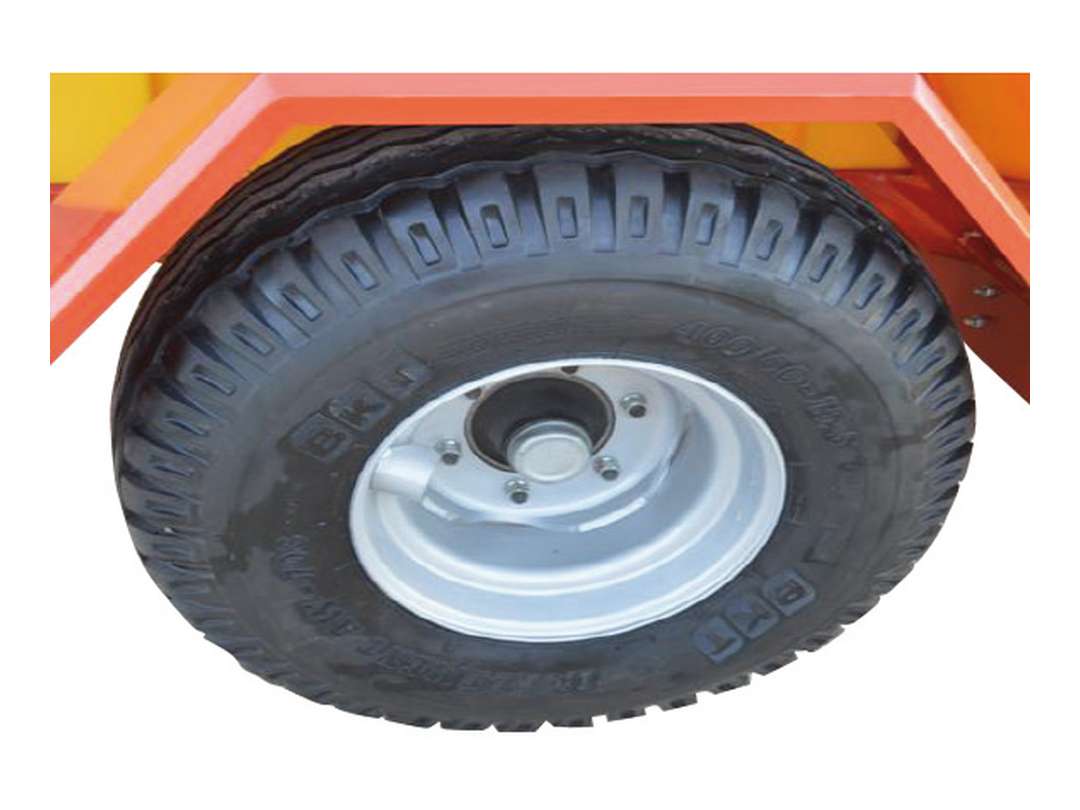

ruedas diferentes tamanos

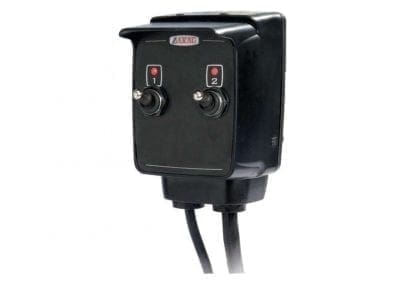

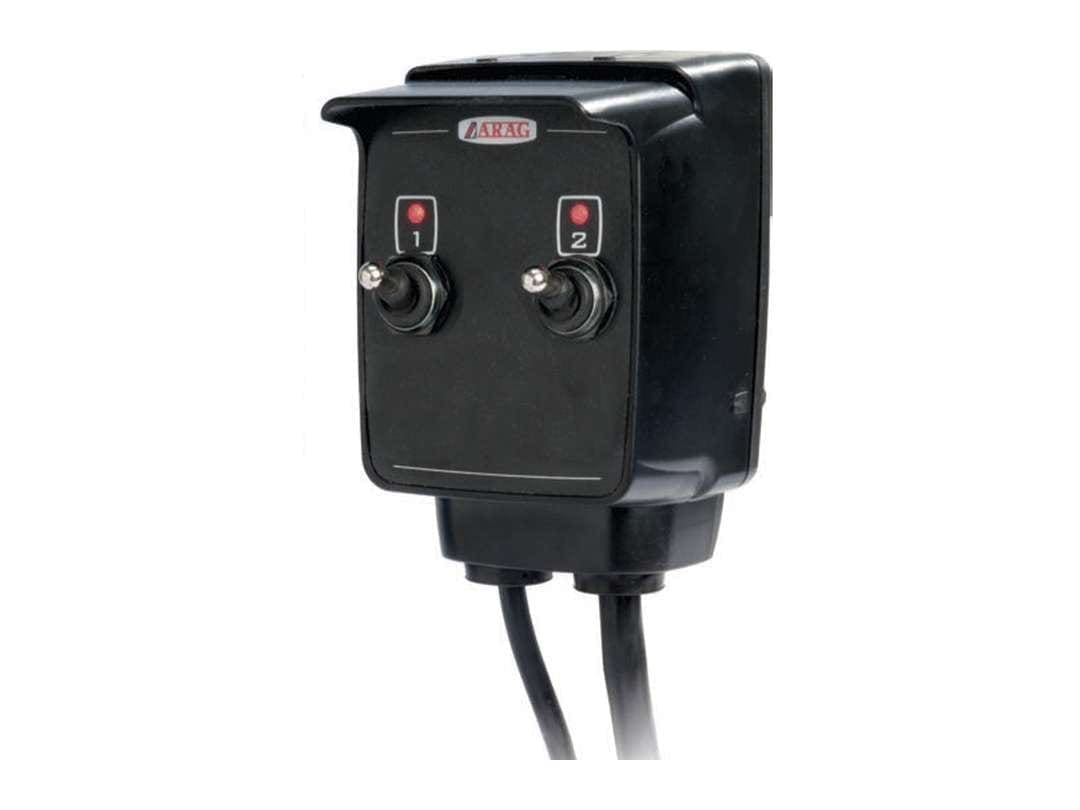

caja de mando para portaboquillas 4668 2 vias 1

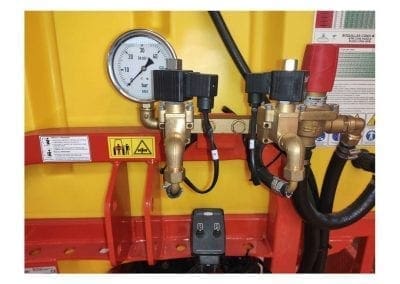

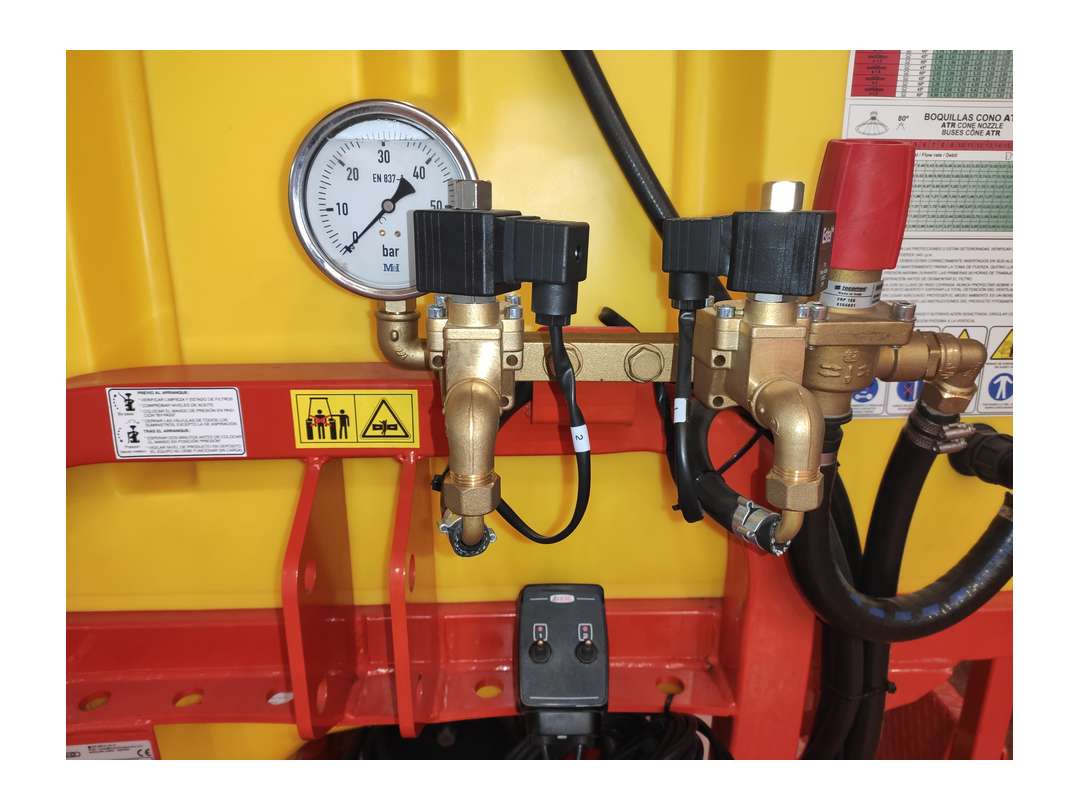

mando electrico de 2 vias con descarga 1

ordenador bravo 180 s

grupo de electrovaluvas de 2 vias con caudalimetro

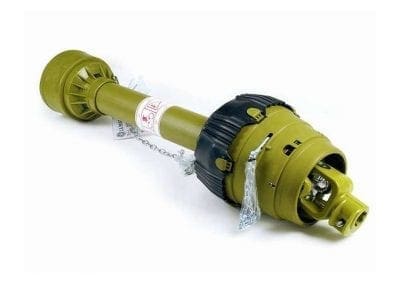

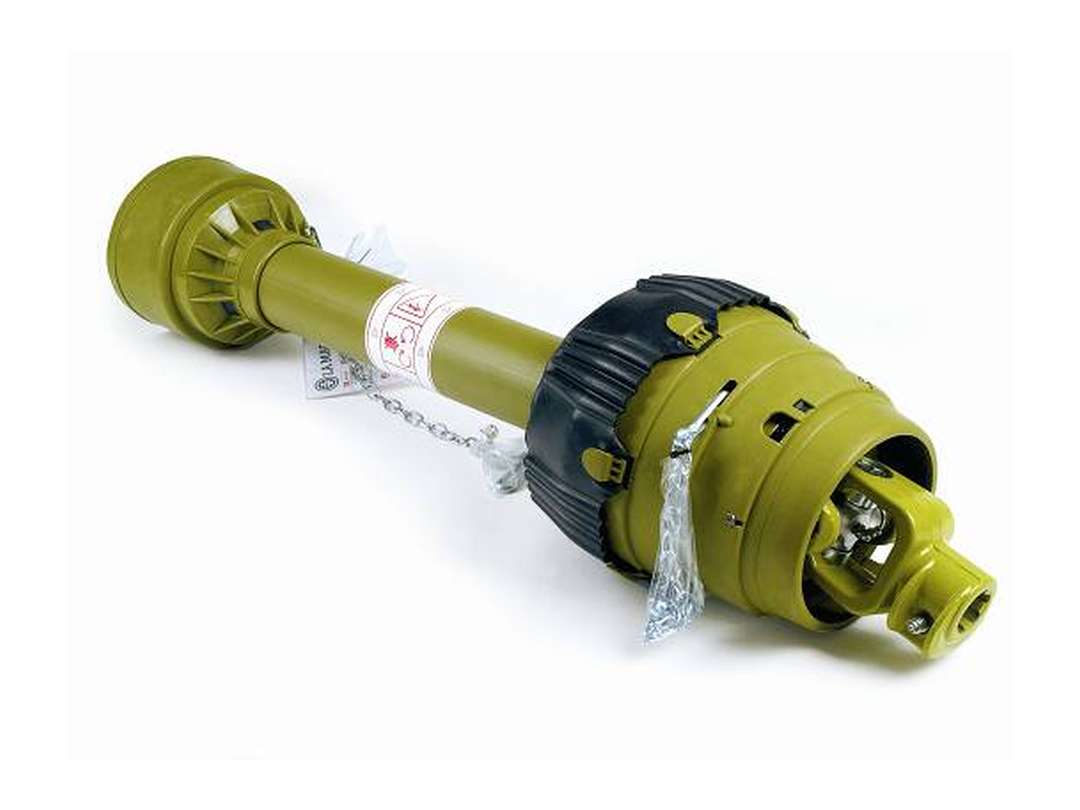

transmision homocinetica

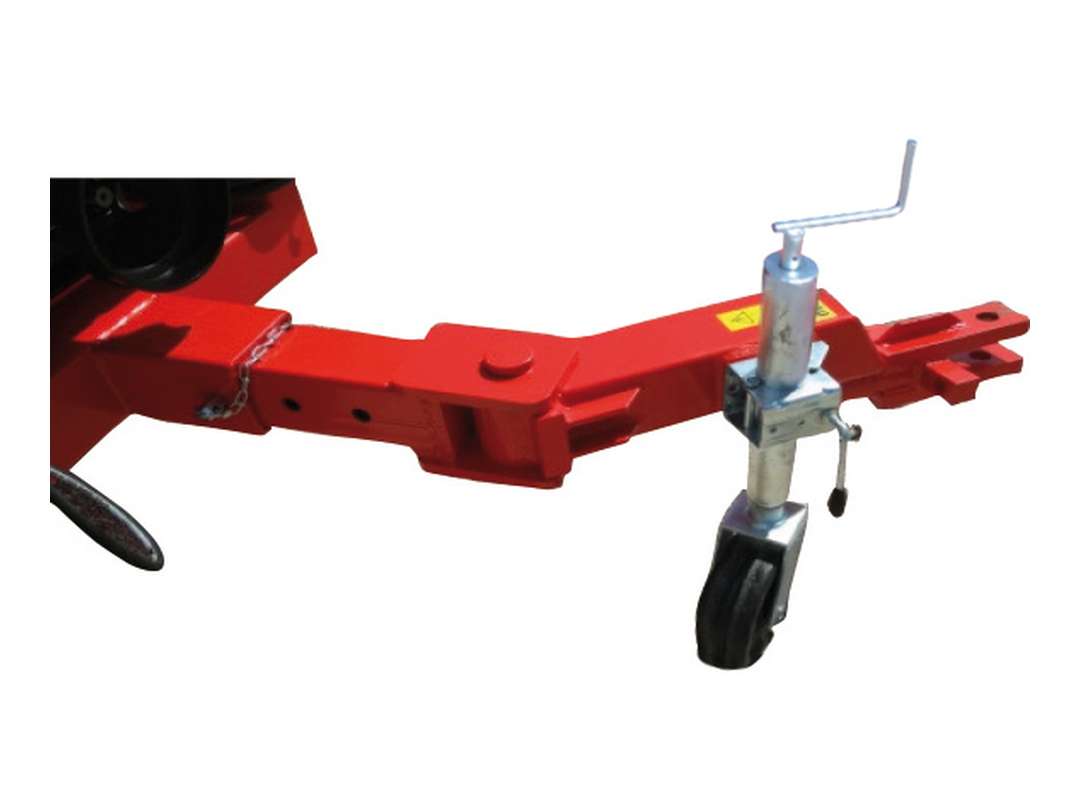

lanza direccional boca pez

deposito mezclador de producto integrado

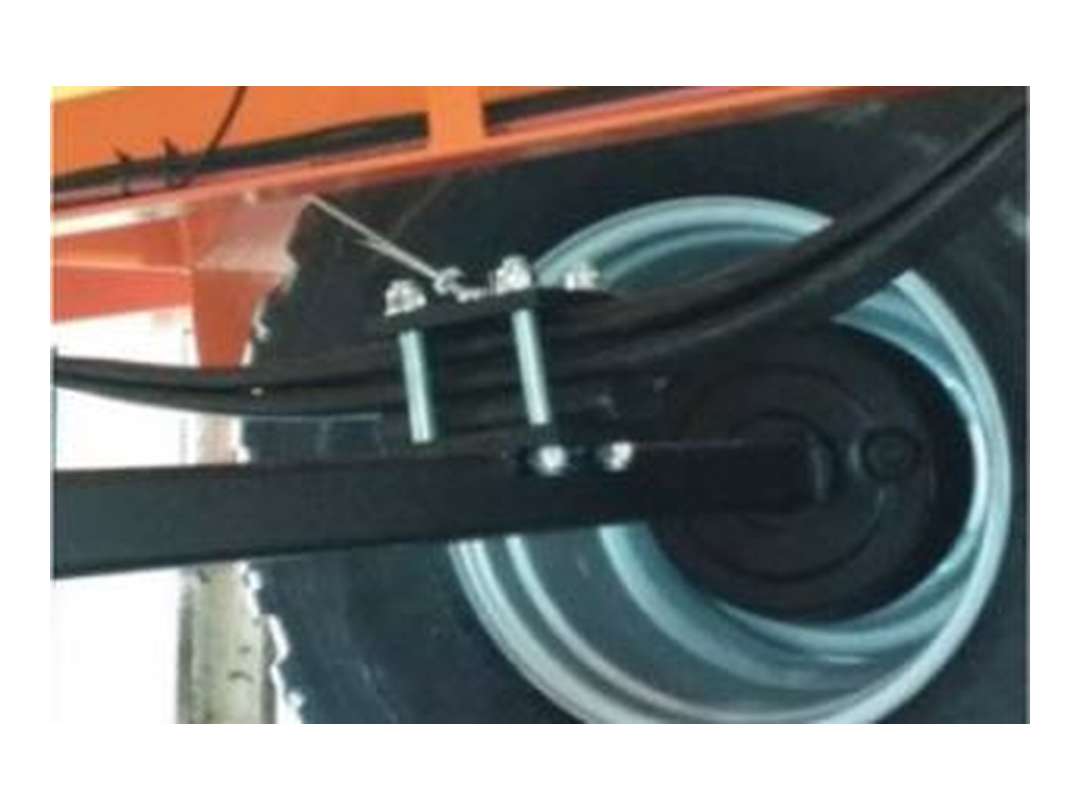

suspension de ballestas chasis

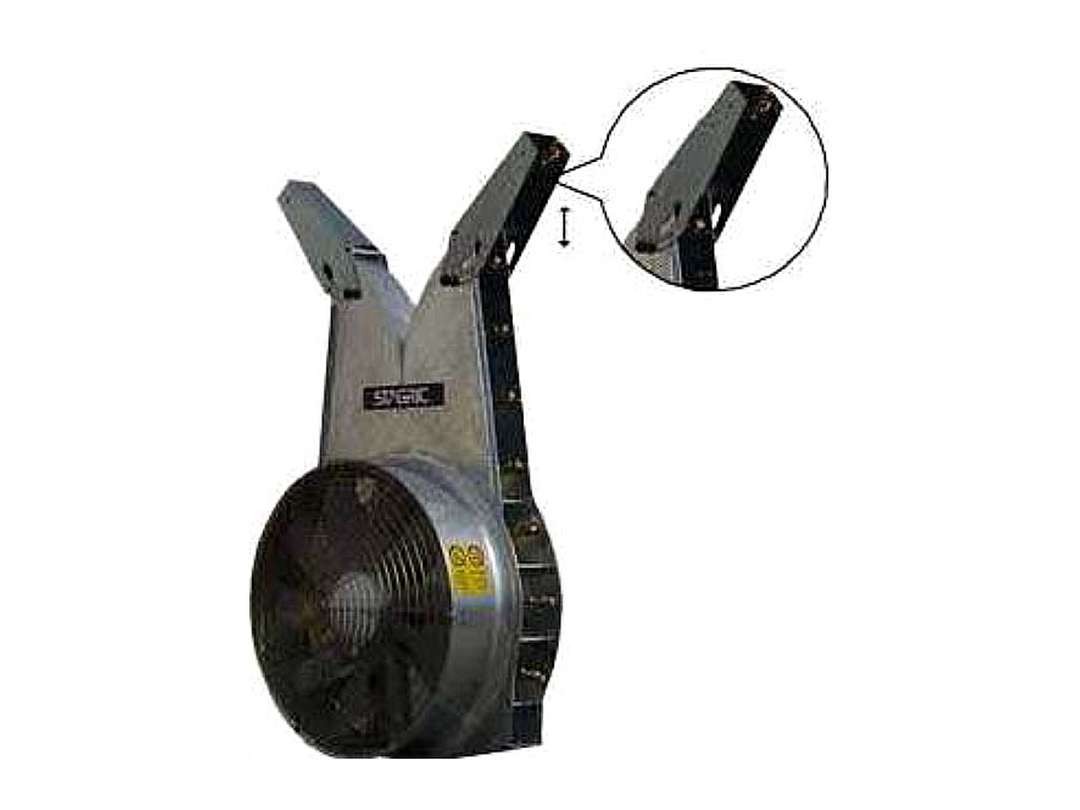

directriz para vina y frutales altos con alerones 1

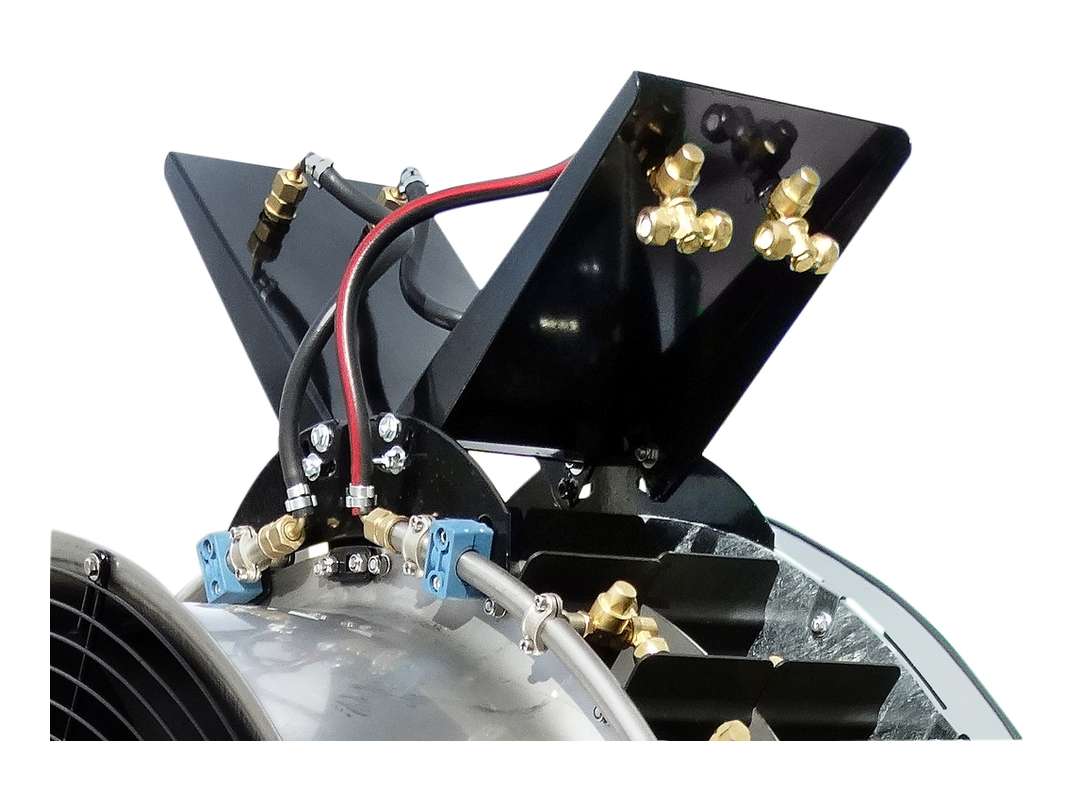

alerones vina largos 1

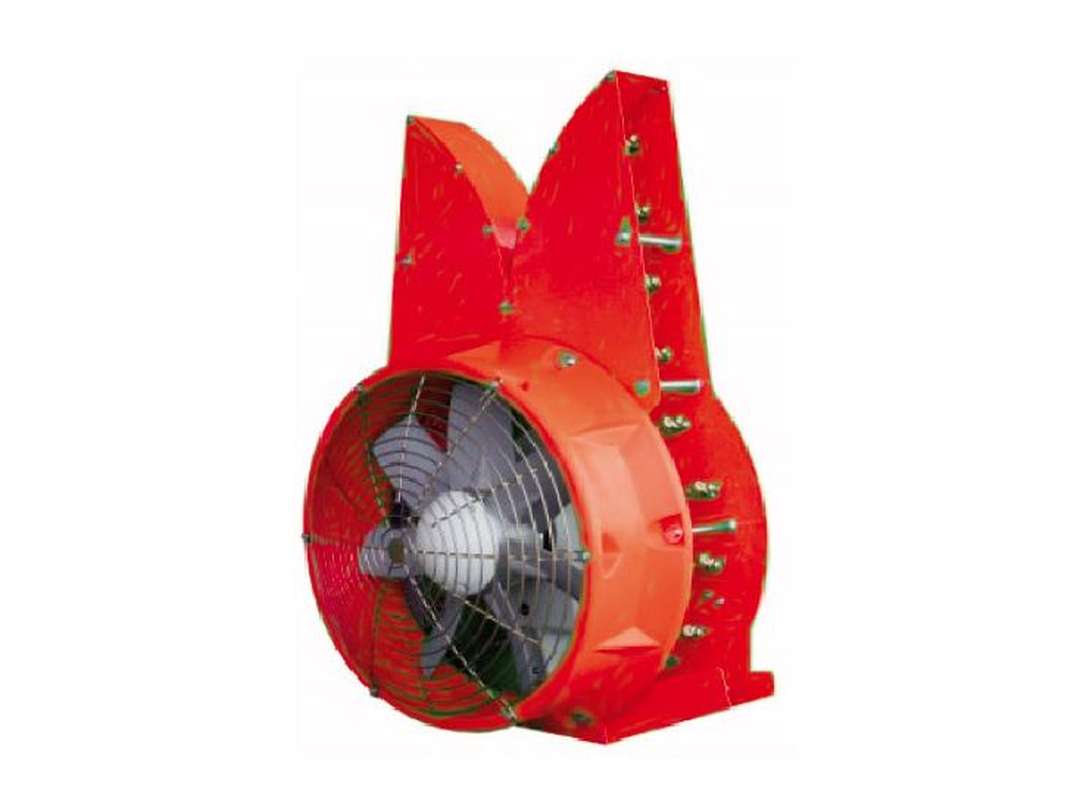

directriz para vina 1

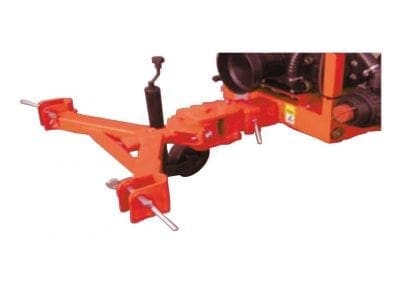

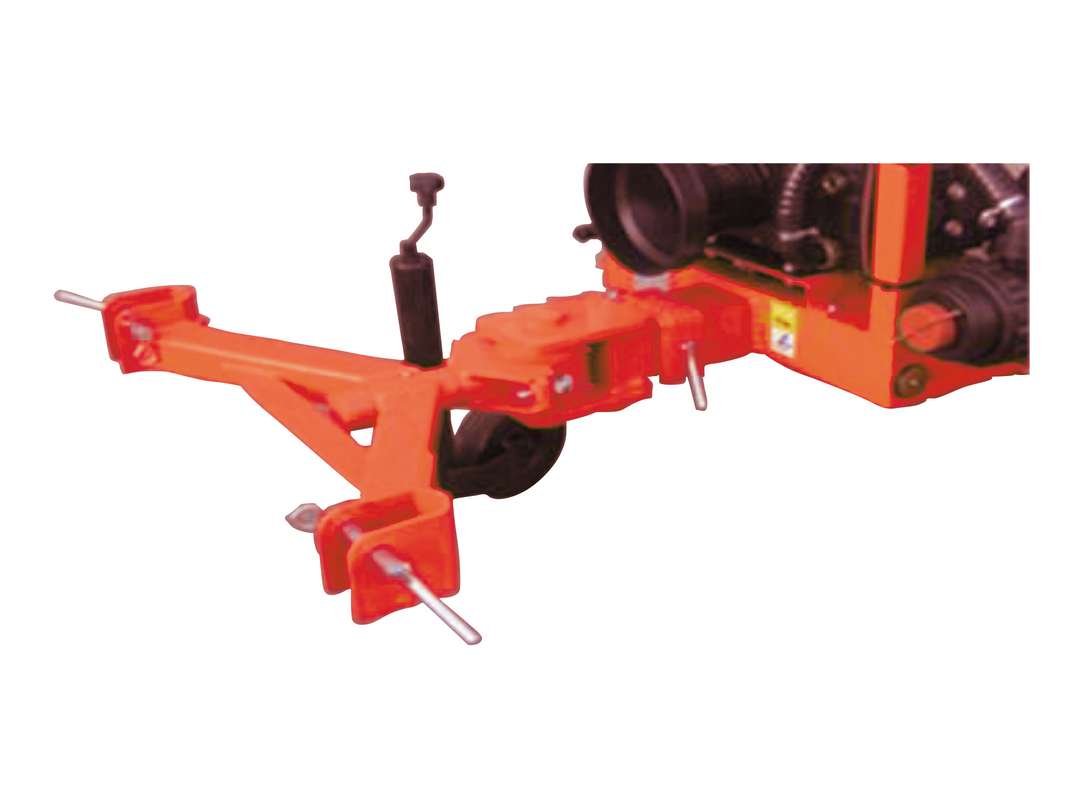

lanza direccional en v homologada

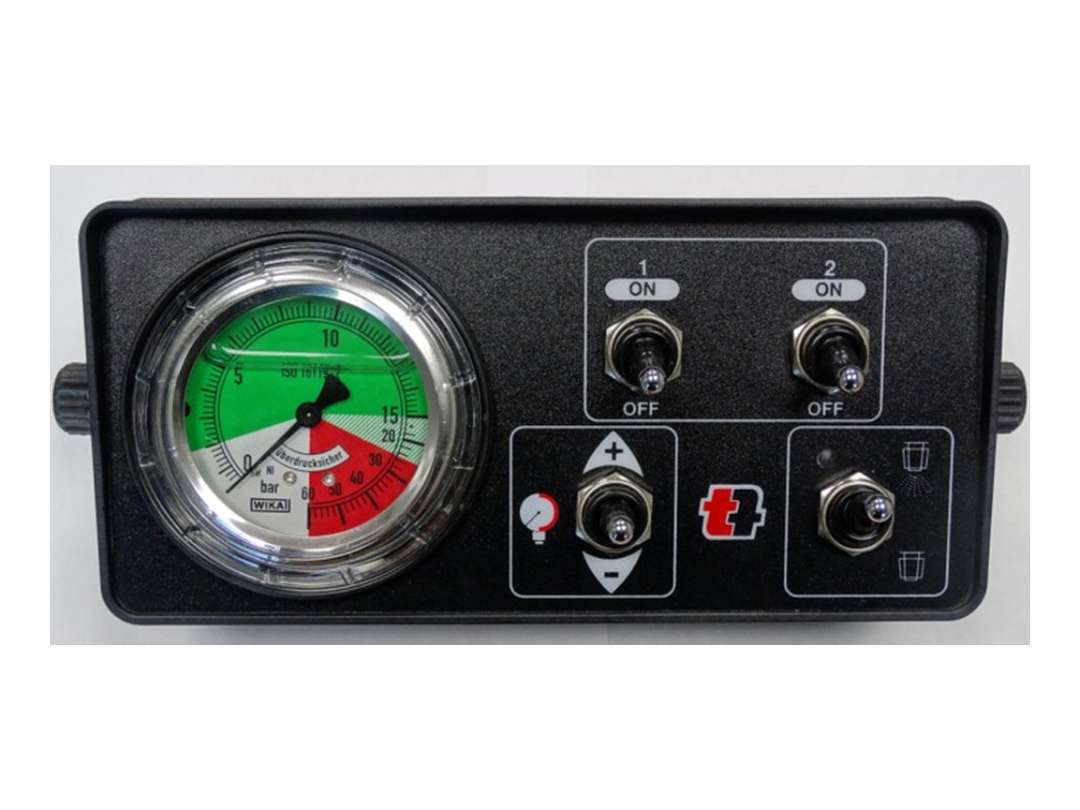

caja para mando electrico 1

mando electrico de 2 vias con volumetricos 1

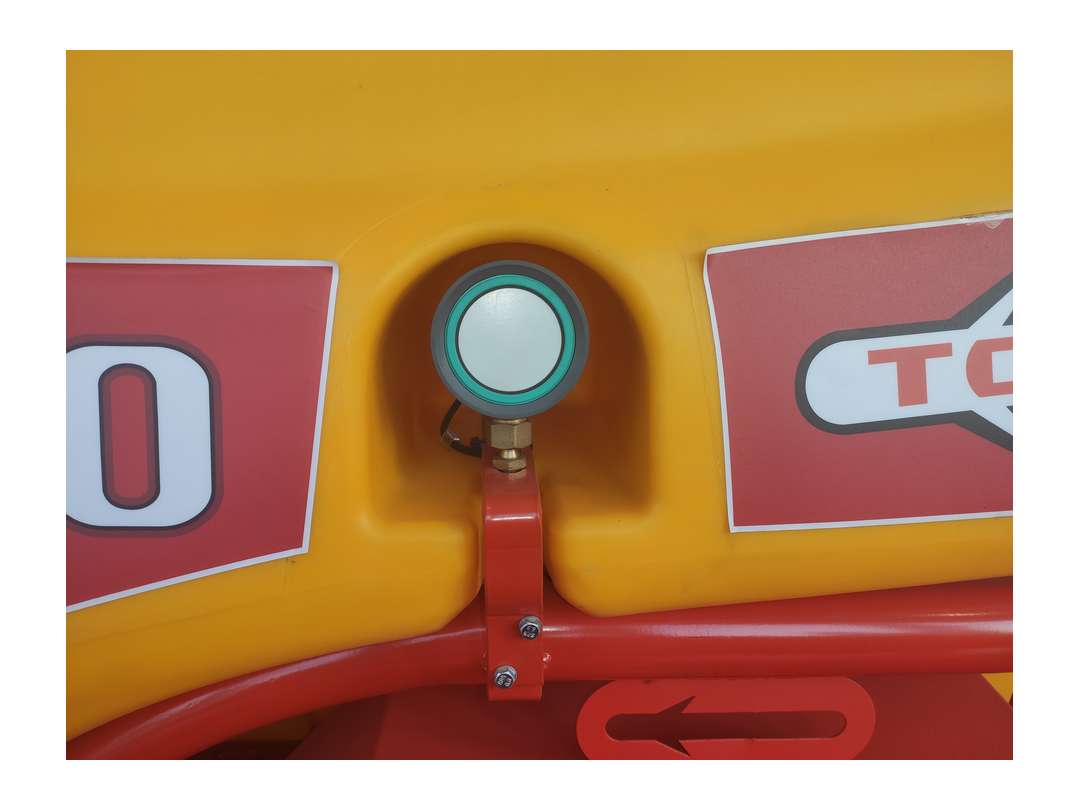

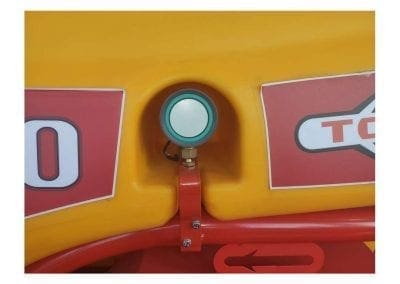

sensor sonar 1

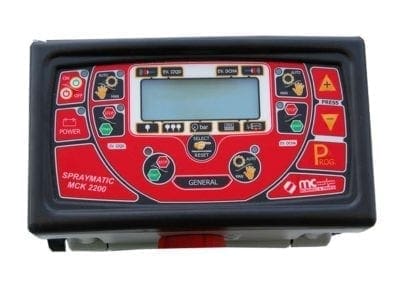

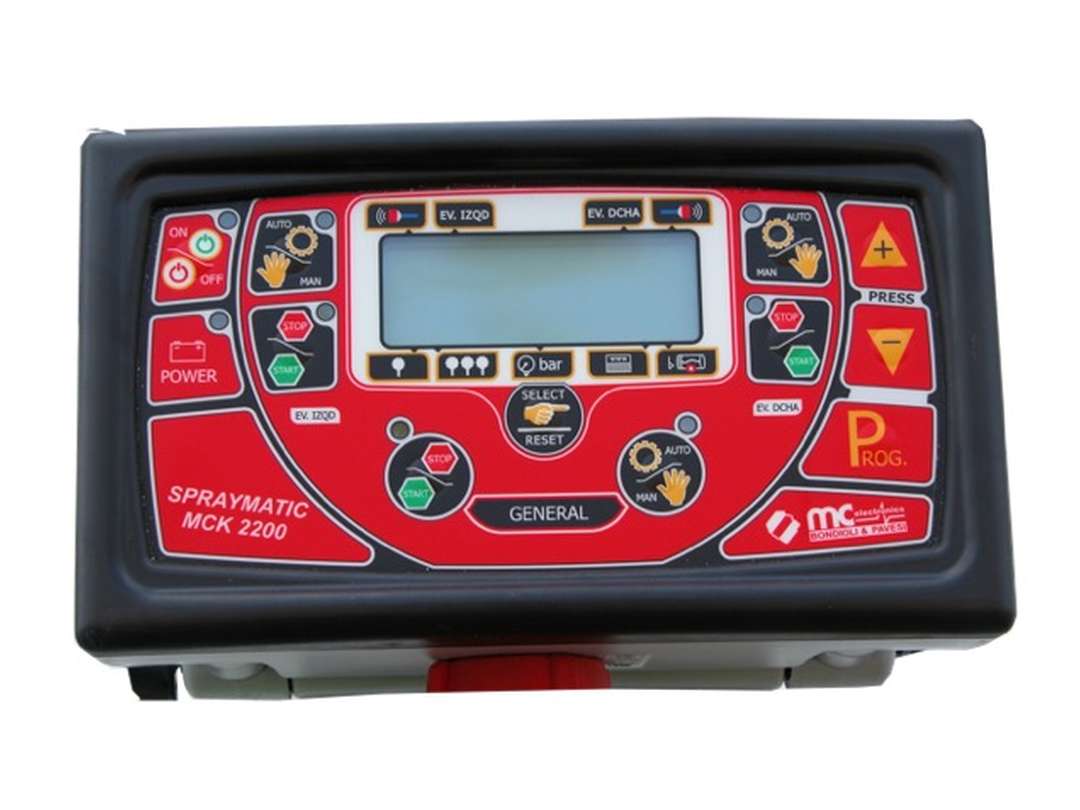

sonar 1

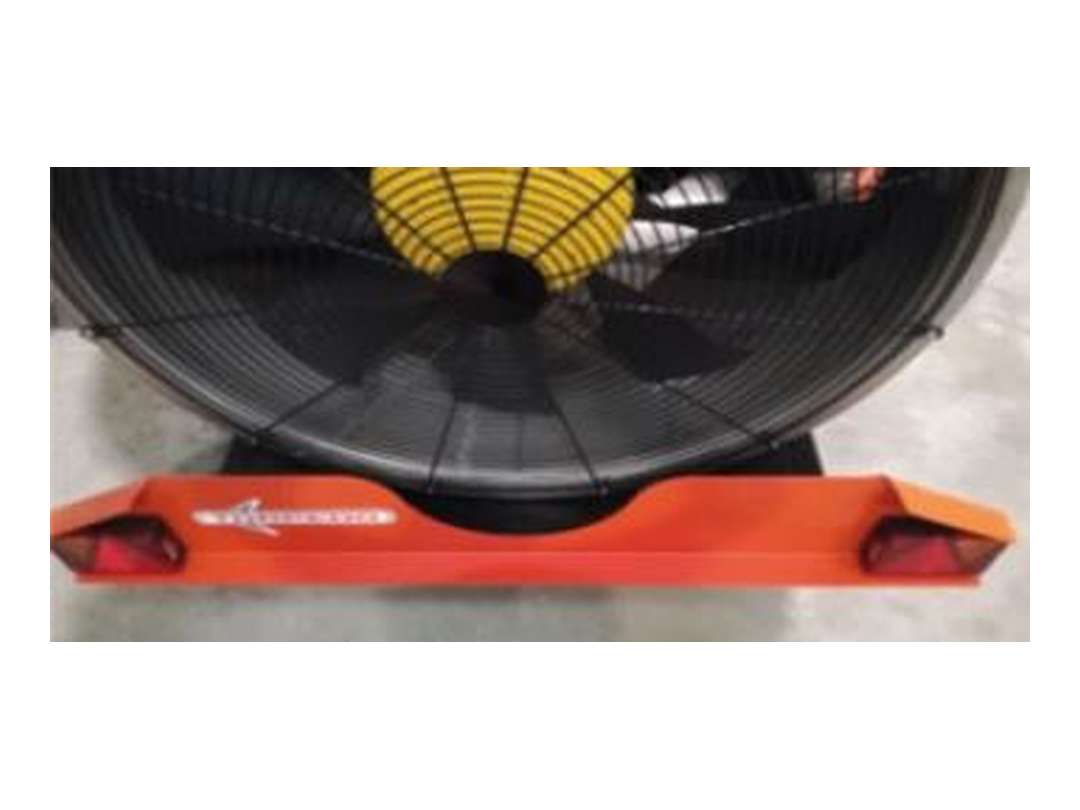

faldon antihojas

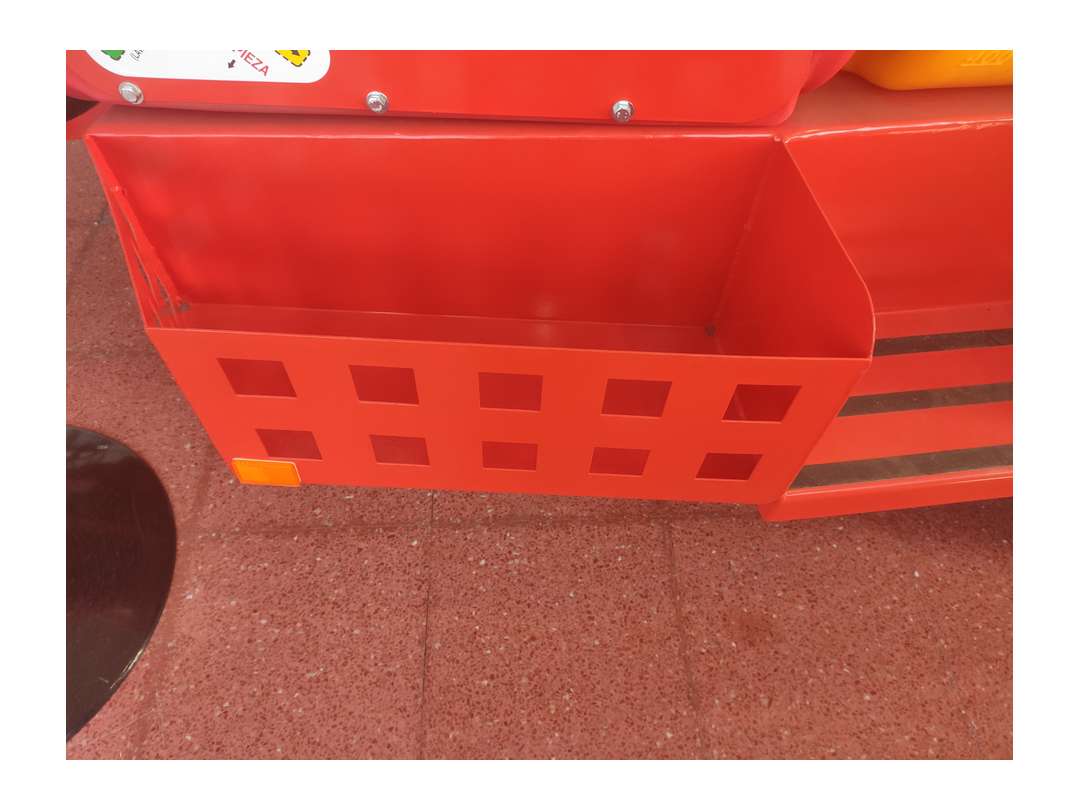

bandeja lateral atomizador

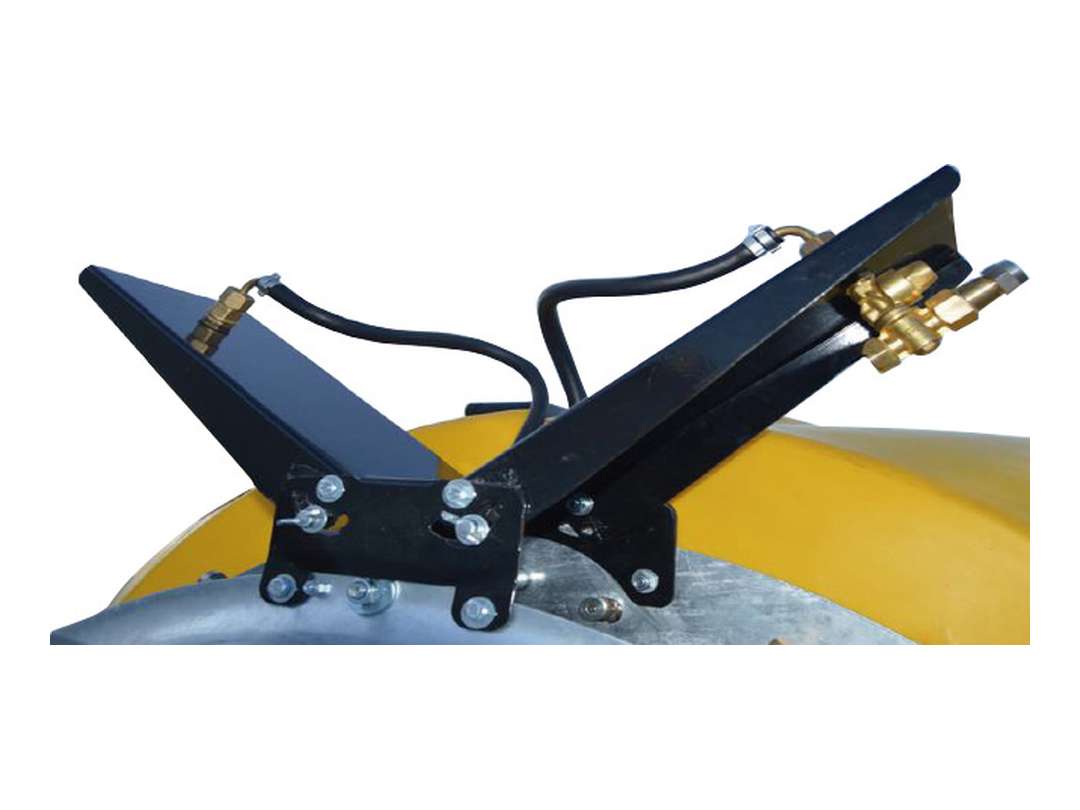

deflector en v

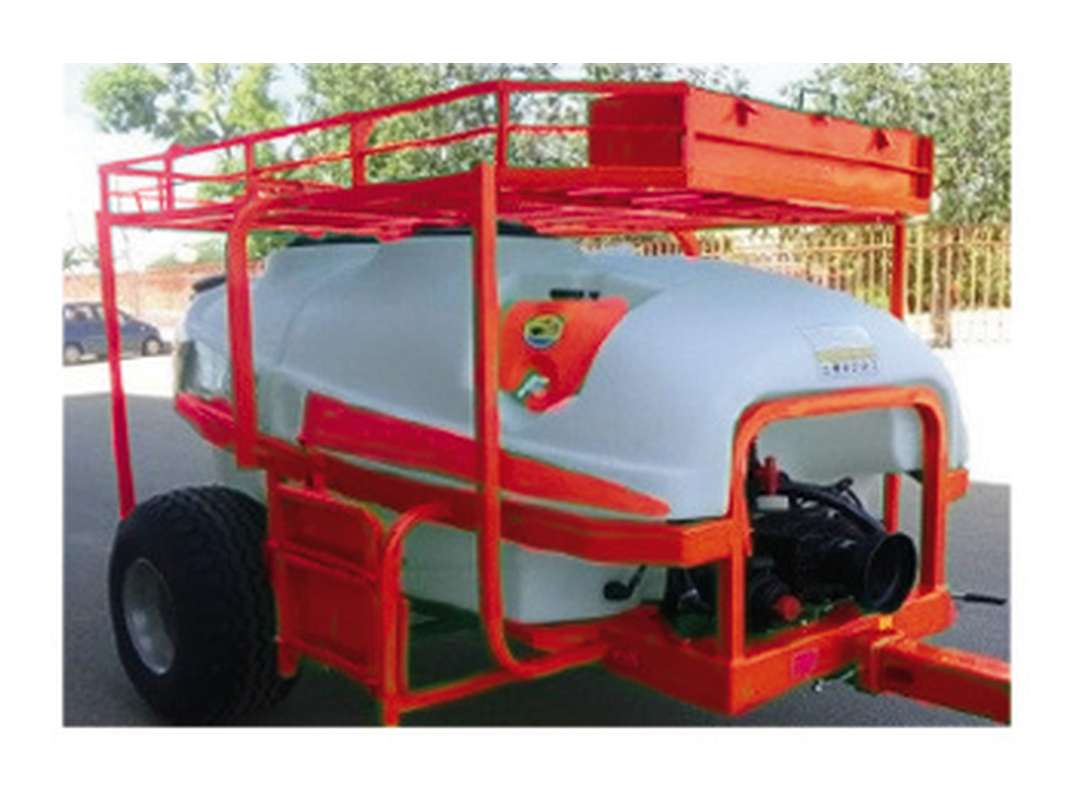

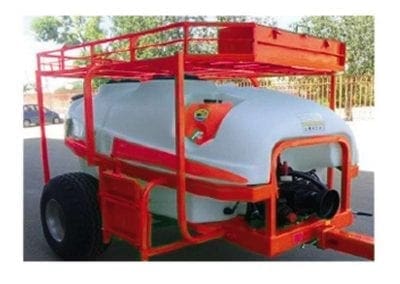

baca superior

If you would like more information about Trailed atomizer Standard, you can contact Technical Service of Torpedo Maquinaria.
