Olive harvester with front umbrella-box and monomass high frequency vibrating head for olive-trees, Serie 200

Standard equipment

  • High pressure hydraulic system.
  • System of orbital multiple vibration in both directions.
  • Elevation and transversal orientation of the head.
  • In-cab electronic control box.
  • Umbrella and clamp opening movement simultaneously
  • Independent umbrella opening regulation
  • Quick system to hitch/unhitch quickly the harvesting box.

CODE

MODEL

TYPE OF UMBRELLA

Tree entrance opening (m)

UMBRELLA DIAMETER (m)

MIN. POWER RECOMENDED (CV)

1RC1MT0040

RS-80-6

Fixed

0,80

6

80

1RC1MT0041

R-A-90 F6

Fixed

0,90

6

90

1RC1MT0042

R-A-90 B6

Bass

0,90

6

90

1RC1MT0043

R-A-90 H6

Hydraulic

0,90

6

90

1RC1MT0044

R-A-90 F7

Fixed

0,90

7

90

1RC1MT0045

R-A-90 B7

Bass

0,90

7

90

1RC1MT0046

R-A-90 H7

HIdráulico

0,90

7

90

Options

  • Reinforced hydraulic cylinder on new front-loader (this option must be mounted in our factory)

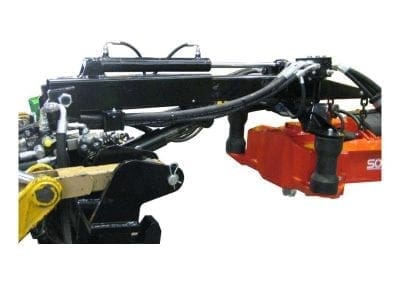

  • 400-mm extension of the vibrating head
  • Protection piece of the hydraulic cylinder
  • Tightening vibrating head adjustment kit
  • Lateral movement of box and vibrating head
  • Joystick
If you would like more information about Olive harvester with front umbrella-box and monomass high frequency vibrating head for olive-trees, Serie 200, you can contact Technical Service of Torpedo Maquinaria.
