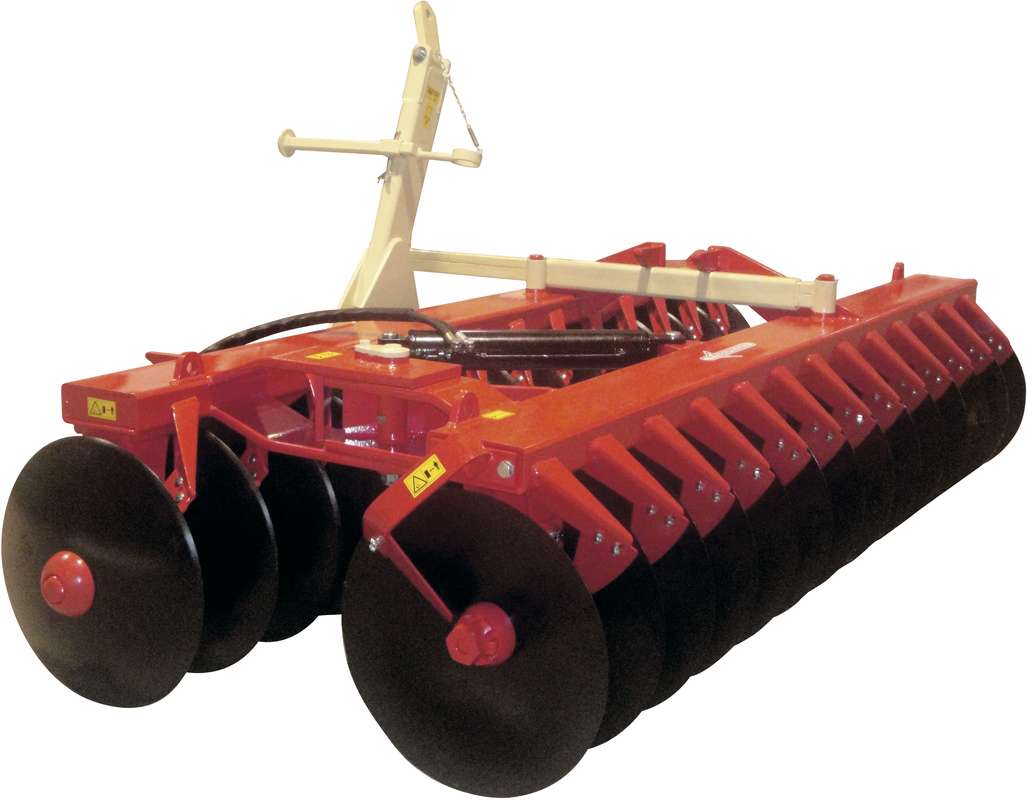

Trailed discs harrows AR-25-T
(Without transport equipment)
Standard equipment
- Tubular steel frame 250x100x8 mm
- Round shaft in steel (F-114), massive 40 x 40 mm for all models.
- Eccentric coupling
- Hydraulic command for actuating either the opening or closing of the harrow
- Hydraulic command for actuating either the opening or closing of the rear equipment of pneumatic wheels (OPTION)

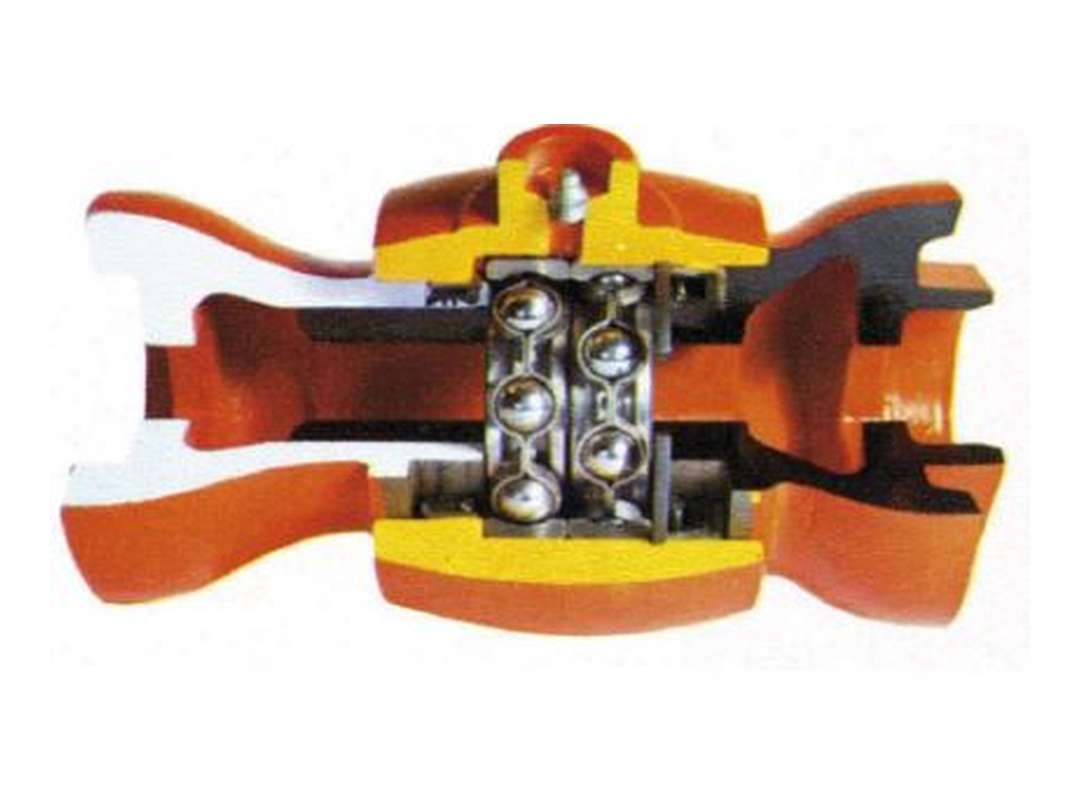

- Rolling system provided with self-alignment carcases MONOBLOCK ball bearing protected with triple joints sealed, preventing any possible entry of the earth inside
|
CODE |
MODEL |
Discs |
Width (m) |
WEIGHT (Kg) |
POWER (CV) |
Wheels |
||||
|
Num. |
Diameter |
Separation |
Support point |
Work |
Transp. |
|||||
|
1011070002 |
AR-25-24-26 S/EQ.TTE-T |
24 |
26” - 66 cm |
25 cm |
8 |
2,94 |
2,85 |
1920 |
120 |
10.0/75-15.3” (12PR) |
|
1011070004 |
AR-25-24-28 S/EQ.TTE-T |
24 |
28” - 71 cm |
25 cm |
8 |
2,94 |
2,85 |
2128 |
120 |
10.0/75-15.3” (12PR) |
|
1011070006 |
AR-25-26-26 S/EQ.TTE-T |
26 |
26” - 66 cm |
25 cm |
8 |
3,19 |
2,85 |
2080 |
130 |
10.0/75-15.3” (12PR) |
|
1011070009 |
AR-25-26-28 S/EQ.TTE-T |
26 |
28” - 71 cm |
25 cm |
8 |
3,19 |
2,85 |
2288 |
130 |
10.0/75-15.3” (12PR) |
|
1011070011 |
AR-25-28-26 S/EQ.TTE-T |
28 |
26” - 66 cm |
25 cm |
8 |
3,44 |
2,85 |
2292 |
140 |
10.0/75-15.3” (12PR) |
|
1011070013 |
AR-25-28-28 S/EQ.TTE-T |
28 |
28” - 71 cm |
25 cm |
8 |
3,44 |
2,85 |
2535 |
140 |
10.0/75-15.3” (12PR) |
|
1011070015 |
AR-25-30-26 S/EQ.TTE-T |
30 |
26” - 66 cm |
25 cm |
8 |
3,69 |
2,85 |
2300 |
150 |
10.0/75-15.3” (12PR) |
|
1011070017 |
AR-25-30-28 S/EQ.TTE-T |
30 |
28” - 71 cm |
25 cm |
8 |
3,69 |
2,85 |
2560 |
150 |
10.0/75-15.3” (12PR) |
|
1011070019 |
AR-25-32-26 S/EQ.TTE-T |
32 |
26” - 66 cm |
25 cm |
8 |
3,94 |
2,85 |
2446 |
160 |
10.0/75-15.3” (12PR) |
|
1011070021 |
AR-25-32-28 S/EQ.TTE-T |
32 |
28” - 71 cm |
25 cm |
8 |
3,94 |
2,85 |
2724 |
160 |
10.0/75-15.3” (12PR) |
|
1011070023 |
AR-25-34-26 S/EQ.TTE-T |
34 |
26” - 66 cm |
25 cm |
10 |
4,19 |
2,85 |
2618 |
170 |
11.5/80-15.3” (14PR) |
|
1011070025 |
AR-25-34-28 S/EQ.TTE-T |
34 |
28” - 71 cm |
25 cm |
10 |
4,19 |
2,85 |
2913 |
170 |
11.5/80-15.3” (14PR) |
|
1011070027 |
AR-25-36-26 S/EQ.TTE-T |
36 |
26” - 66 cm |
25 cm |
12 |
4,44 |
2,85 |
2784 |
180 |
11.5/80-15.3” (14PR) |
|
1011070030 |
AR-25-36-28 S/EQ.TTE-T |
36 |
28” - 71 cm |
25 cm |
12 |
4,44 |
2,85 |
3096 |
180 |
11.5/80-15.3” (14PR) |
Options
- Equipment of hydraulic longitudinal transport
- Protector of bearing carcase
- Wheels 11.5/80-15.3 (14PR) from 24 to 32 discs.
- Wheels 400/60-15.5″ (14PR) from 34 to 36 discs
- Increase distance to 280 mm
- Discs 28″ of 8 mm
- Point increase for additional support
