Superchisel 3 rows CHR3-T

(Arm 40×40)

superchissel 3 filas plegado horizontal

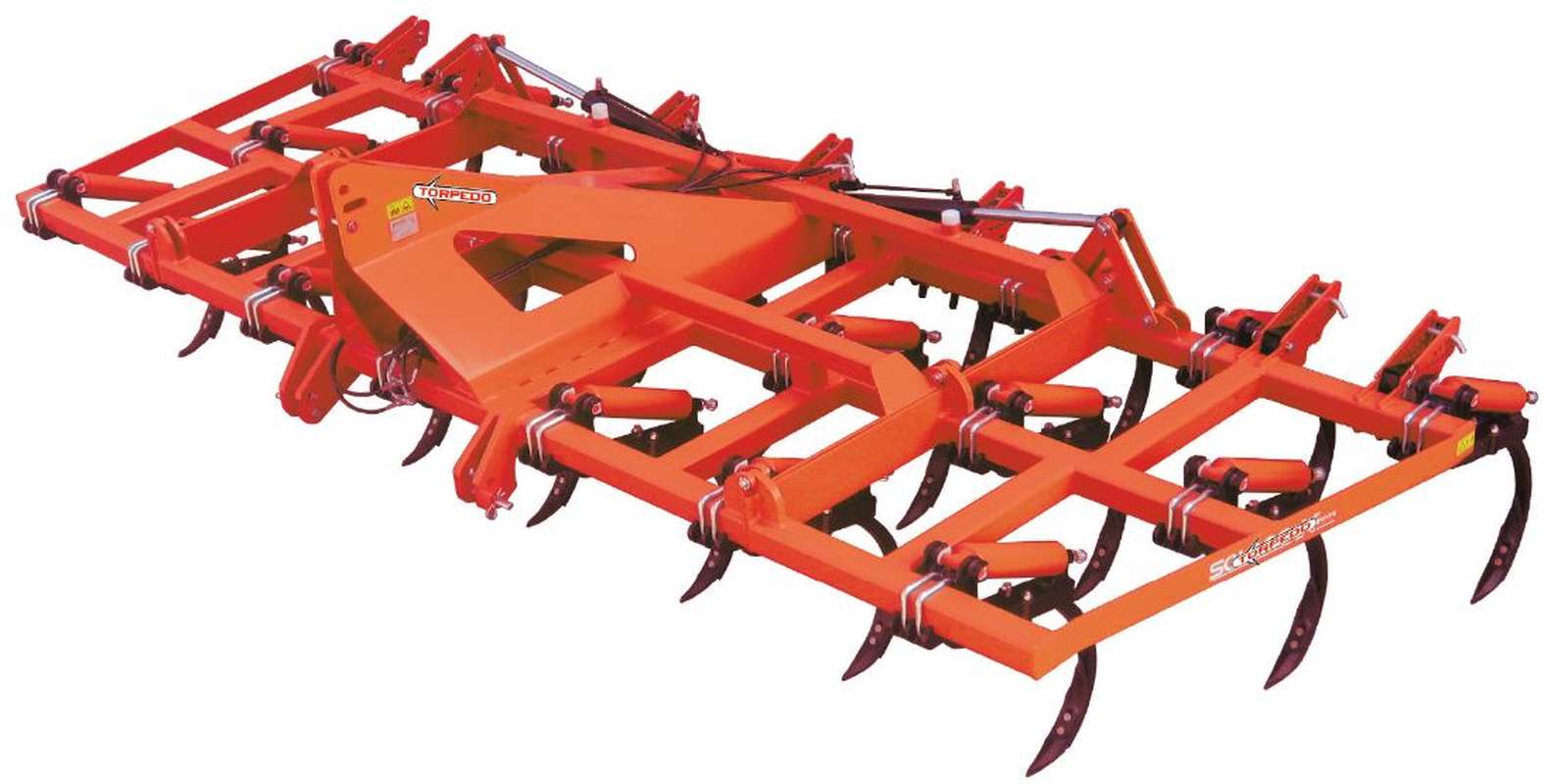

superchisel 3 filas plegado horizontal vista superior

Standard equipment

  • Frame 1000 x 100 x 8 mm.
  • Arm 40x40 mm
  • Category II and III hitching
  • Doublepoint share as standard.
  • Clean space between files 75 cm.
  • Clean under chassis: 75 cm
  • Working depth from 30 to 35 cm.
  • All models have double reinforced spring.

NOTE: WHEELS, ROLLER AND HERSE ARE OPTION IN ALL MODELS.

brazo con seguridad mecanica 1
reja de 2 puntas 1

Horizontal folder CHR3-T

CODE

MODEL

Arms

Width (m)

WEIGHT (Kg)

POWER (CV)

Total

Fixed

Separation

Work

Folder

1011030011

CHR3-10-T

10

10

27,50

2,75

2,75

990

100-120

1011030013

CHR3-13-T

13

13

24,00

3,12

3,00

1190

120-140

1011030012

CHR3-13-PH-T

13

2+9+2

27,50

3,57

2,50

1280

120-140

1011030014

CHR3-16-PH-T

16

3+10+3

27,50

4,40

2,80

1670

160-180

1011030015

CHR3-19-PH-T

19

4+11+4

27,50

5,22

3,00

2120

180-210

1011030016

CHR3-22-PH-T

22

5+12+5

25,00

5,50

3,00

2230

210-240

Options

  • Set of2 metallic wheels (Ø 400×150) with crank
  • High Arm 40x40 mm
  • Wing-shaped share (400 mm)
  • Customized clearance between rows
  • Set of 2 pneumatic wheels with crank
  • Arm 50x30
  • Hitching bar
  • Customized space between arms

Rakes ((horizontal folder))

Rake with 2 rows Ø 10 mm for superchisel 3 rows

CODE

MODEL

Width (m)

Kg

1CURAT0024

CHR3-10-T

2,80

170

1CURAT0025

CHR3-13-T

3,05

185

1CURAT0026

CHR3-13-PH-T

3,80

203

1CURAT0027

CHR3-16-PH-T

4,60

212

1CURAT0028

CHR3-19-PH-T

5,40

224

1CURAT0035

CHR3-22-PH-T

5,70

240

Rollers ((horizontal folder))

Roller Ø 400 mm ROUND 25 mm, 10 bars, for superchisel 3 rows

CODE

MODEL

Width (m)

Kg

1CUROT0056

CHR3-10-T

2,80

220

1CUROT0058

CHR3-13-T

3,05

290

1CUROT0066

CHR3-13-PH-T

3,80

452

1CUROT0067

CHR3-16-PH-T

4,60

540

1CUROT0068

CHR3-19-PH-T

5,40

672

1CUROT0153

CHR3-22-PH-T

5,70

685

Roller Ø 550 mm SQUARE 25 mm, 9 bars, for superchisel 3 rows

CODE

MODEL

Width (m)

Kg

1CUROT0044

CHR3-10-T

2,80

345

1CUROT0047

CHR3-13-T

3,05

425

1CUROT0151

CHR3-13-PH-T

3,80

558

1CUROT0148

CHR3-16-PH-T

4,60

649

1CUROT0149

CHR3-19-PH-T

5,40

744

1CUROT0050

CHR3-22-PH-T

5,70

750
sistema de acoplamiento de rodillo y rastrilla 1
separacion especial entre filas 1
separacion especial entre brazos 1
rueda metalica con manivela 1
reja de ala ancha 1
juego de ruedas neumaticas con manivela
brazo de diferente tamano
barra de enganche 1
If you would like more information about Superchisel 3 rows CHR3-T, you can contact Technical Service of Torpedo Maquinaria.
