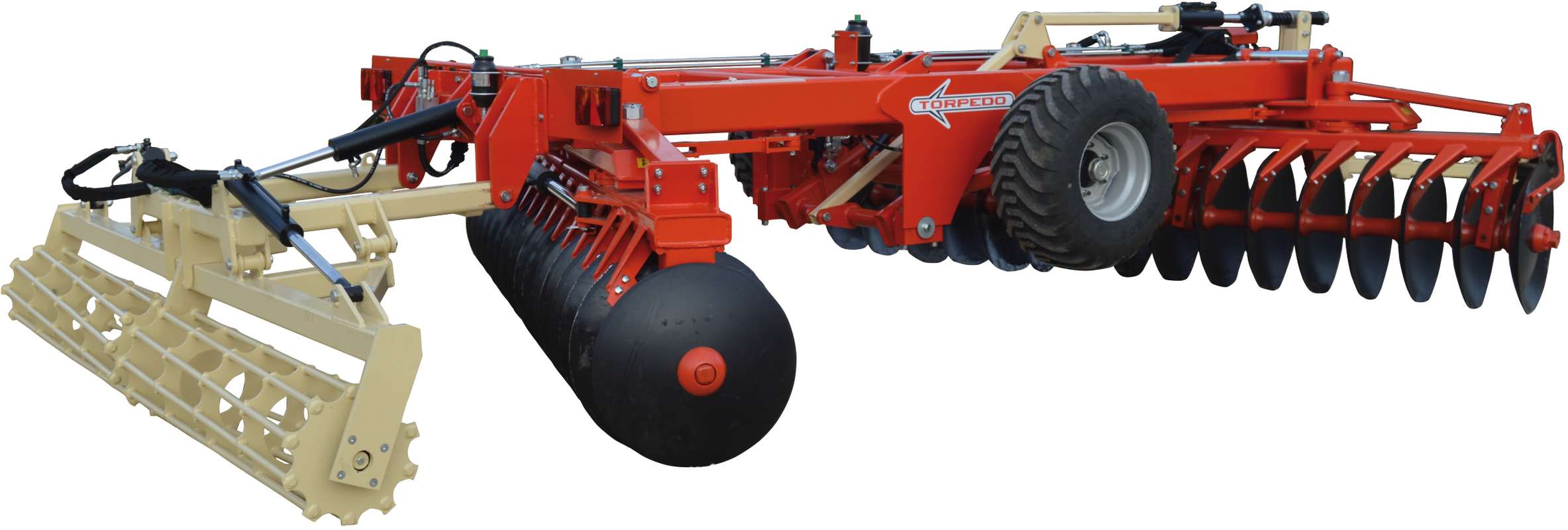

Semi-mounted discs harrows SH PH-25-T
(Central wheels. Hydraulic folding)
Equipamiento de serie
- Tubular steel frame 250x100x8 mm
- Round shaft in steel (F-114), massive 40 x 40 mm for all models.
- Eccentric coupling
- Hydraulic control to run the central transport equipment.
- Rolling system provided with self-alignment carcases MONOBLOCK ball bearing protected with triple joints sealed, preventing any possible entry of the earth inside
|
CODE |
MODEL |
Discs |
Width (m) |
WEIGHT (Kg) |
POWER (CV) |
Wheels |
||||
|
Num. |
Diameter |
Separation |
Support point |
Work |
Transp. |
|||||
|
1011080001 |
SH PH-25-24-26-T |
24 |
26” - 66 cm |
25 cm |
8 |
2,94 |
2,40 |
2850 |
100-110 |
400/60-15.5” (14PR) |
|
1011080002 |
SH PH-25-24-28-T |
24 |
28” - 71 cm |
25 cm |
8 |
2,94 |
2,40 |
3105 |
100-110 |
400/60-15.5” (14PR) |
|
1011080003 |
SH PH-25-26-26-T |
26 |
26” - 66 cm |
25 cm |
8 |
3,19 |
2,40 |
3010 |
110-120 |
400/60-15.5” (14PR) |
|
1011080004 |
SH PH-25-26-28-T |
26 |
28” - 71 cm |
25 cm |
8 |
3,19 |
2,40 |
3295 |
110-120 |
400/60-15.5” (14PR) |
|
1011080005 |
SH PH-25-28-26-T |
28 |
26” - 66 cm |
25 cm |
8 |
3,44 |
2,40 |
3180 |
130-140 |
400/60-15.5” (14PR) |
|
1011080006 |
SH PH-25-28-28-T |
28 |
28” - 71 cm |
25 cm |
8 |
3,44 |
2,40 |
3485 |
130-140 |
400/60-15.5” (14PR) |
|
1011080007 |
SH PH-25-32-26-T |
32 |
26” - 66 cm |
25 cm |
8 |
3,94 |
2,40 |
3520 |
150-160 |
400/60-15.5” (14PR) |
|
1011080008 |
SH PH-25-32-28-T |
32 |
28” - 71 cm |
25 cm |
8 |
3,94 |
2,40 |
3870 |
150-160 |
400/60-15.5” (14PR) |
|
1011080009 |
SH PH-25-36-26-T |
36 |
26” - 66 cm |
25 cm |
12 |
4,44 |
2,40 |
3855 |
160-170 |
400/60-15.5” (14PR) |
|
1011080010 |
SH PH-25-36-28-T |
36 |
28” - 71 cm |
25 cm |
12 |
4,44 |
2,40 |
4250 |
160-170 |
400/60-15.5” (14PR) |
|
1011080011 |
SH PH-25-40-26-T |
40 |
26” - 66 cm |
25 cm |
16 |
4,97 |
2,40 |
4200 |
180-190 |
400/60-15.5” (14PR) |
|
1011080012 |
SH PH-25-40-28-T |
40 |
28” - 71 cm |
25 cm |
16 |
4,97 |
2,40 |
4640 |
180-190 |
400/60-15.5” (14PR) |
|
1011080013 |
SH PH-25-44-26-T |
44 |
26’’ - 66 cm |
25 cm |
16 |
5,47 |
2,40 |
4545 |
190-200 |
400/60-15.5” (14PR) |
|
1011080014 |
SH PH-25-44-28-T |
44 |
28’’ - 71 cm |
25 cm |
16 |
5,47 |
2,40 |
5025 |
190-200 |
400/60-15.5” (14PR) |
|
1011080015 |
SH PH-25-48-26-T |
48 |
26’’ - 66 cm |
25 cm |
16 |
5,97 |
2,40 |
4880 |
210-220 |
400/60-15.5” (14PR) |
|
1011080016 |
SH PH-25-48-28-T |
48 |
28’’ - 71 cm |
25 cm |
16 |
5,97 |
2,40 |
5410 |
210-220 |
400/60-15.5” (14PR) |
Standard simple discs. (26’’discs as standard in 6 mm and 28’’ as standard in 7 mm of thickness.). Hydraulic opening of working angle as standard for all models.
Opcionales
- Hydraulic shift, lateral lance
- Discs 28″ of 8 mm flat or toothed
- Point increase for additional support
- Hydraulic adjustment cloths leveling.
- Protector of bearing carcase
- Discs separation to 280 mm
- Wheels 500/50-17 (14 PR)
- Hydropneumatic suspension

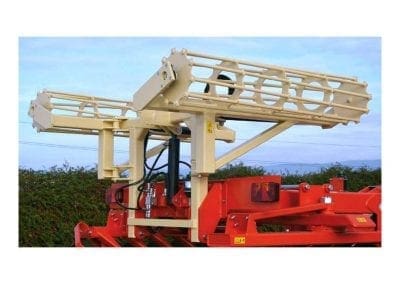

- Hydraulic folding rollers
