Trailed atomizer Olive-trees

atomizador arrastrado olivos vista 3

atomizador arrastrado olivos

atomizador arrastrado olivos en campo 01

atomizador arrastrado olivos en campo 02

atomizador arrastrado olivos en campo 03

atomizador arrastrado olivos 2000 litros

atomizador arrastrado olivos 3000 litros vista 2

atomizador arrastrado olivos 3000 litros

atomizador arrastrado olivos con grupo aire inverter

Standard equipment

Chassis in structural steel and cold-folded sheet.
Polyester powder paint qualicoat.
Extensible fixed lance.
Wheels 10.0/75 15,3” in 2000 L as standard.
Wheels 11.5/80-15,3” in 3000 L as standard.
Wheels 400/60 15,5” in 4000 L as standard
Adjustable support wheel.
Tank in polyethylene.
Hands-washing tank.
Circuit washing tank
Lights kit
Alfa high pressure control
Skirt anti leaves
APPROVED TO CIRCULATE BY PUBLIC ROAD

BLOCK 1A - Basic atomizer (without brakes and with parking blocks)

CODE	MODEL
1061030002	TRAILED ATOMIZER 2.000 L OLIVES SF
1061030004	TRAILED ATOMIZER 3.000 L OLIVES SF

Note: standard models do not carry mudguard or side trays atomizer as standard.

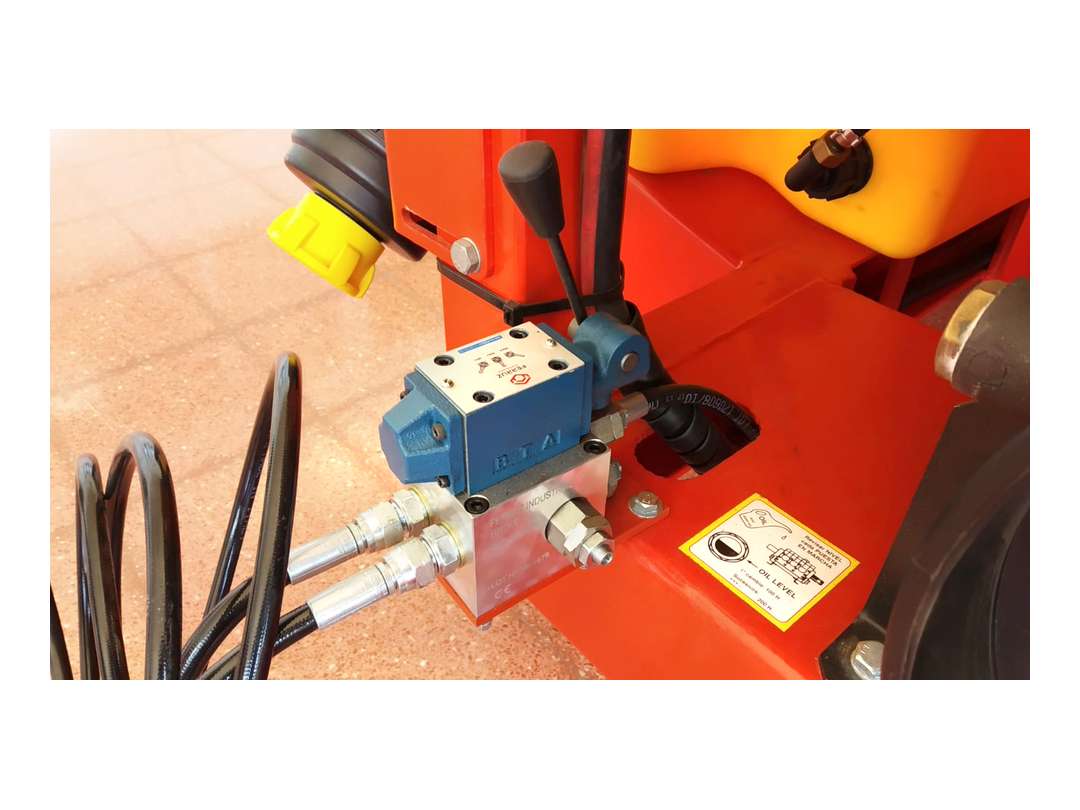

BLOCK 1B - Basic atomizer (with hydraulic brake and load regulating valve)

CODE	MODEL
1061030001	TRAILED ATOMIZER 2.000 L OLIVES FH
1061030003	TRAILED ATOMIZER 3.000 L OLIVES FH
1061030005	TRAILED ATOMIZER 4.000 L OLIVES FH

BLOCK 2 - PUMPS

CODE	MODEL	N. MEMBRANES	N. PISTONS	L/m	Bar
2PUBGA0028	PUMP UDOR OMEGA 135	3		137	50
2PUBGA0029	PUMP UDOR OMEGA 170	4		175	50
2PUBGA0047	PUMP UDOR BETA-S 135	3		118	50
2PUBGA0030	PUMP UDOR GAMMA 105		3	109	60
2PUBGA0016	PUMP UDOR GAMMA 125		3	134	60
2PUBGA0044	PUMP UDOR GAMMA 155		3	155	60

BLOCK 3 - GRUPO DE AIRE

CODE	MODEL	NUM. SPEEDS	MATERIAL *	Ø SHOVEL	JETS	POWER TRACTOR
2PUTBA0010	AIR FAN T-920 ANDALUCIA	2	GV	920	16	75 CV

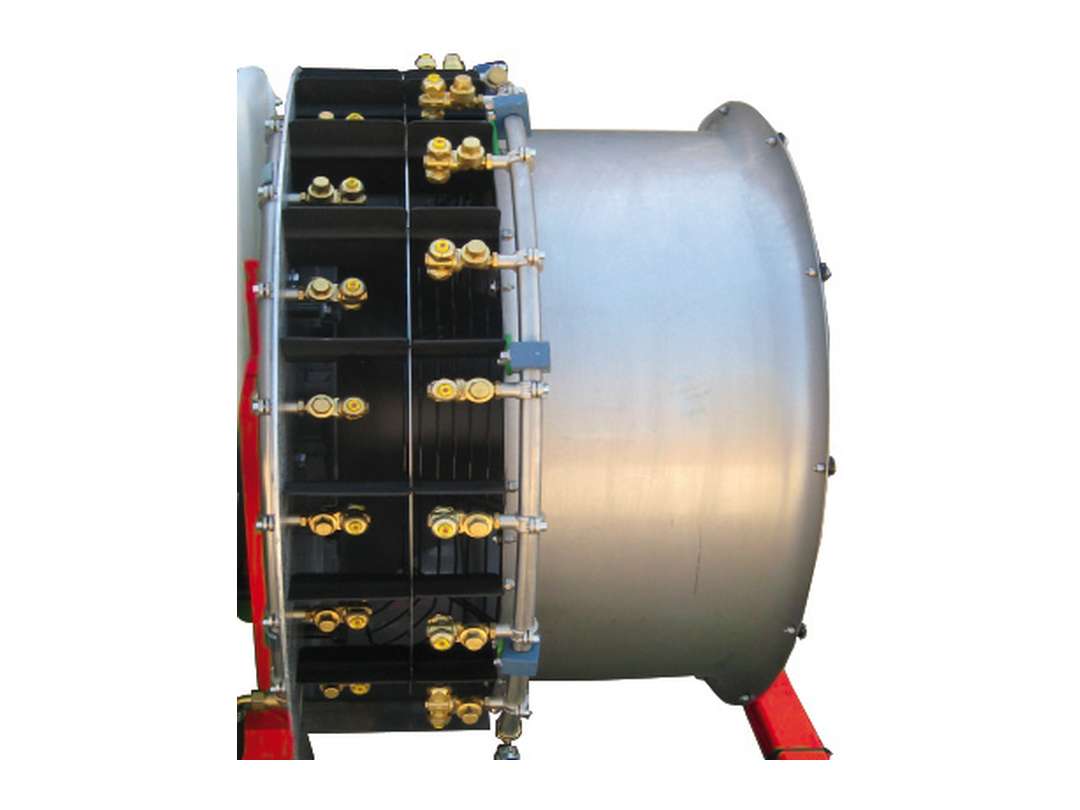

2PUTBA0012	AIR FAN T-920 CITRUS SPECIAL	2	INOX + GV	920	28	75 CV
2PUTBA0014	AIR FAN T-920 INVERTER	2	INOX + GV	920	14	75 CV

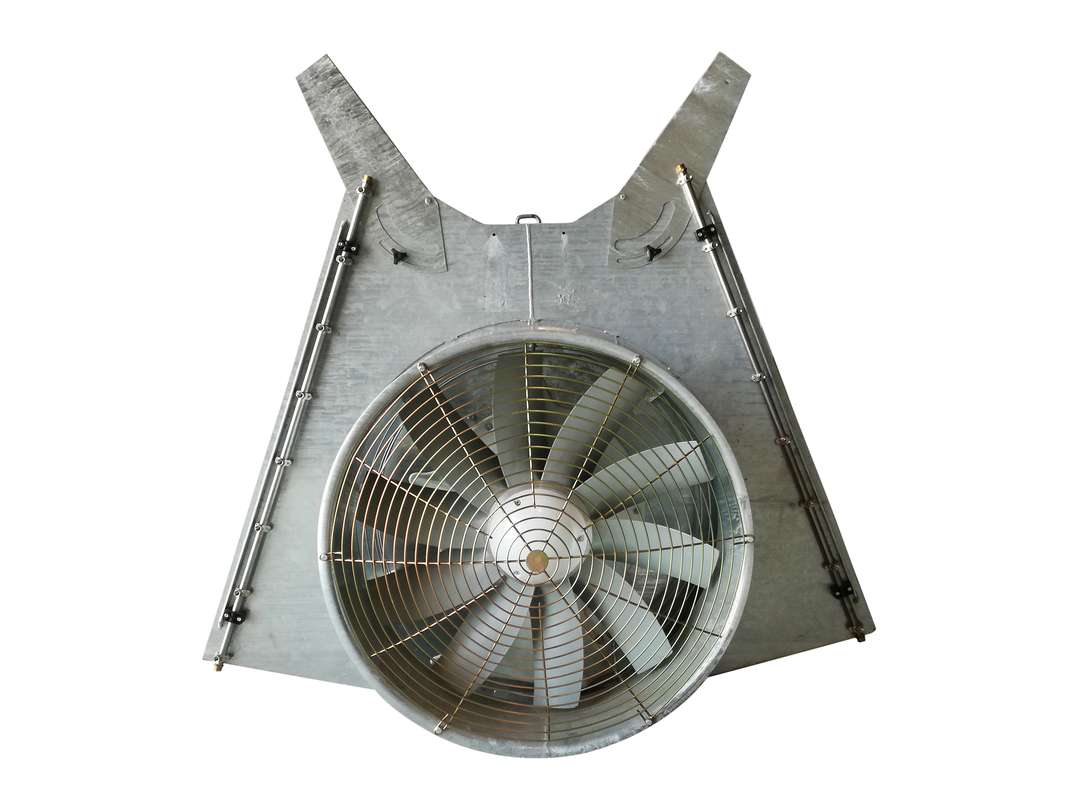

2PUTBA0000	AIR FAN T-920 TORRETA OLIVES GALV	2	GV	920	18	80 CV
2PUTBA0011	AIR FAN T-920 TORRETA OLIVES INOX	2	INOX + GV	920	18	81 CV
2PUTBA0013	AIR FAN T-1.060 CITRUS SPECIAL	2	INOX + GV	1060	26	95 CV

* P.E.= Polyethylene GV= Galvanized INOX=Inox

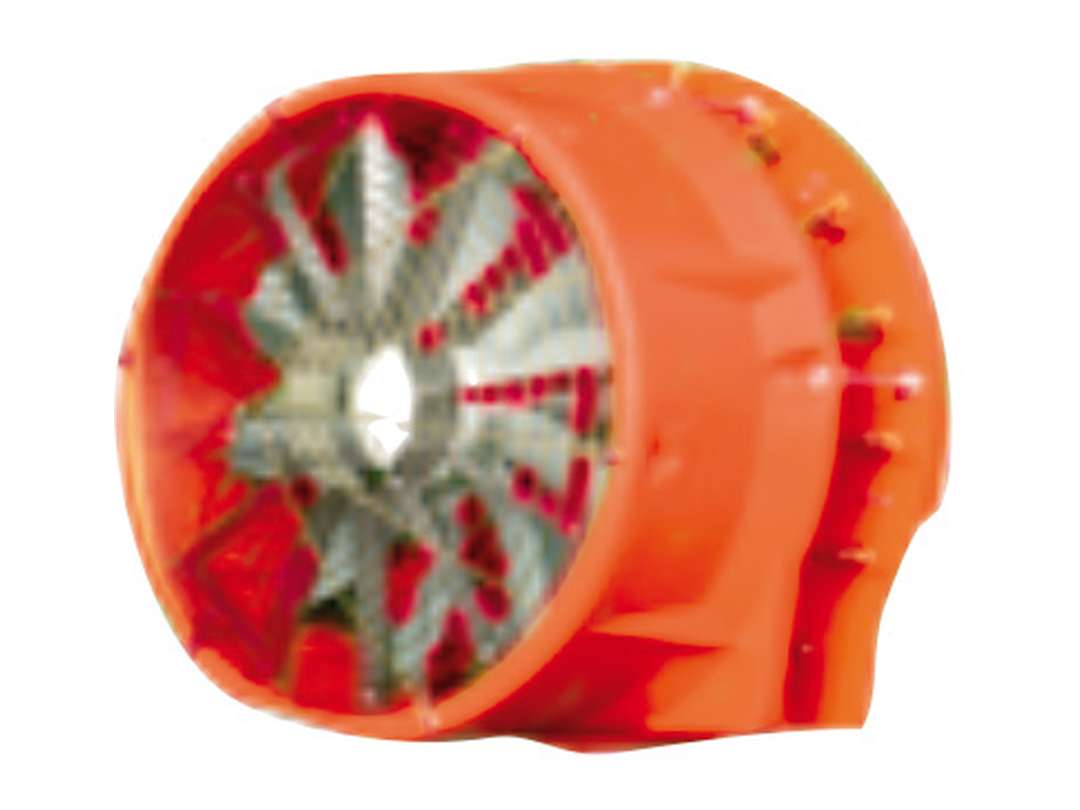

Grupo aire t 820 torpedo 2

Grupo aire t 920 andalucia 1

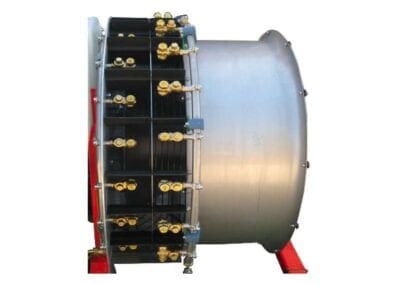

Grupo aire t 920 esp. citricos 1

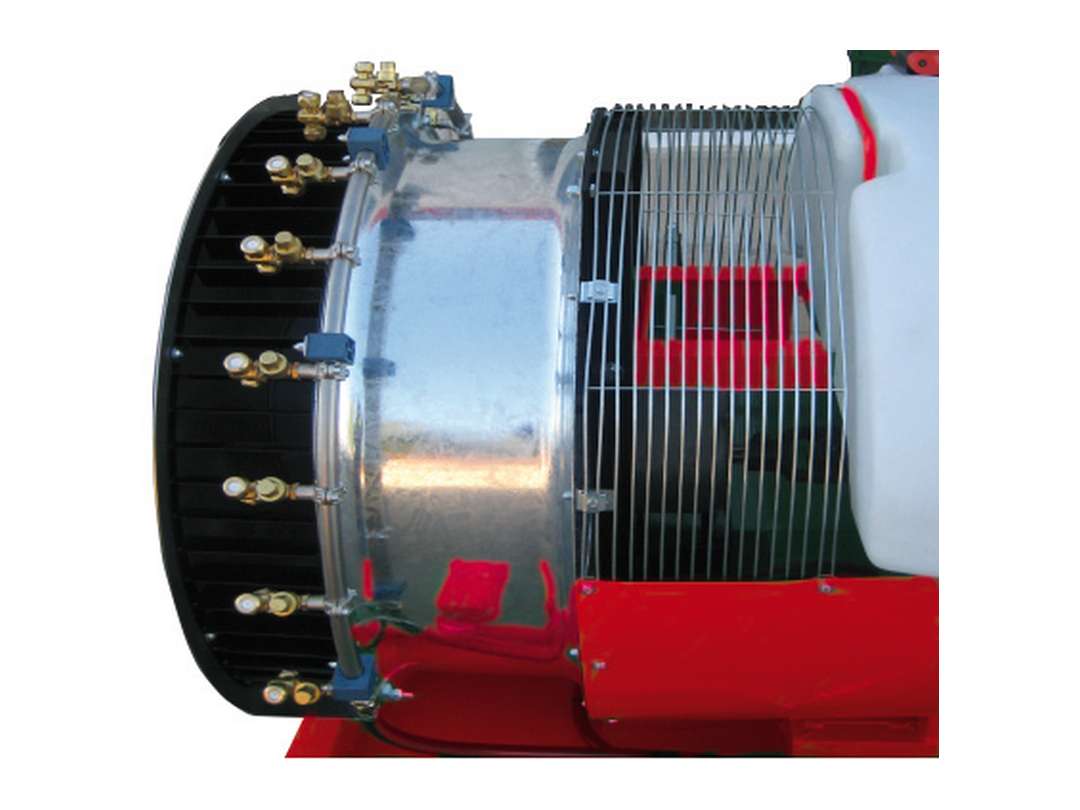

Grupo aire t 920 inverter 2

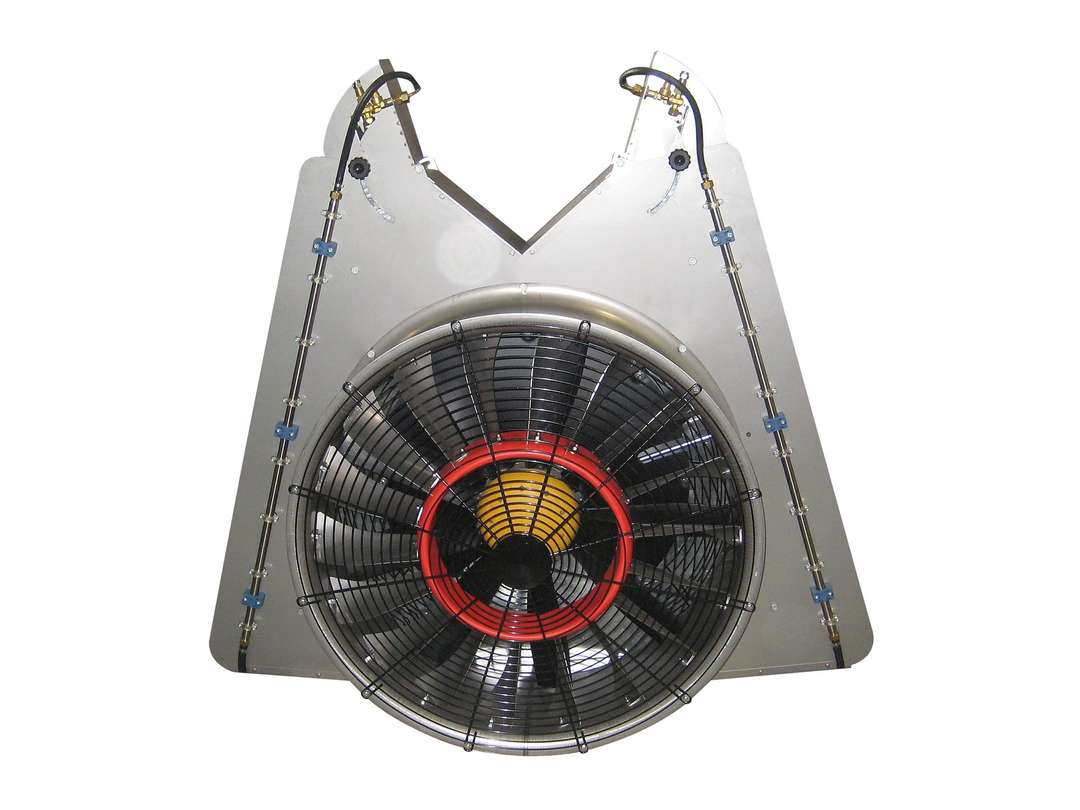

Grupo aire t 920 torreta olivos 2

torreta olivos galvanizada t 920 2

Options

Approved V-directional launch

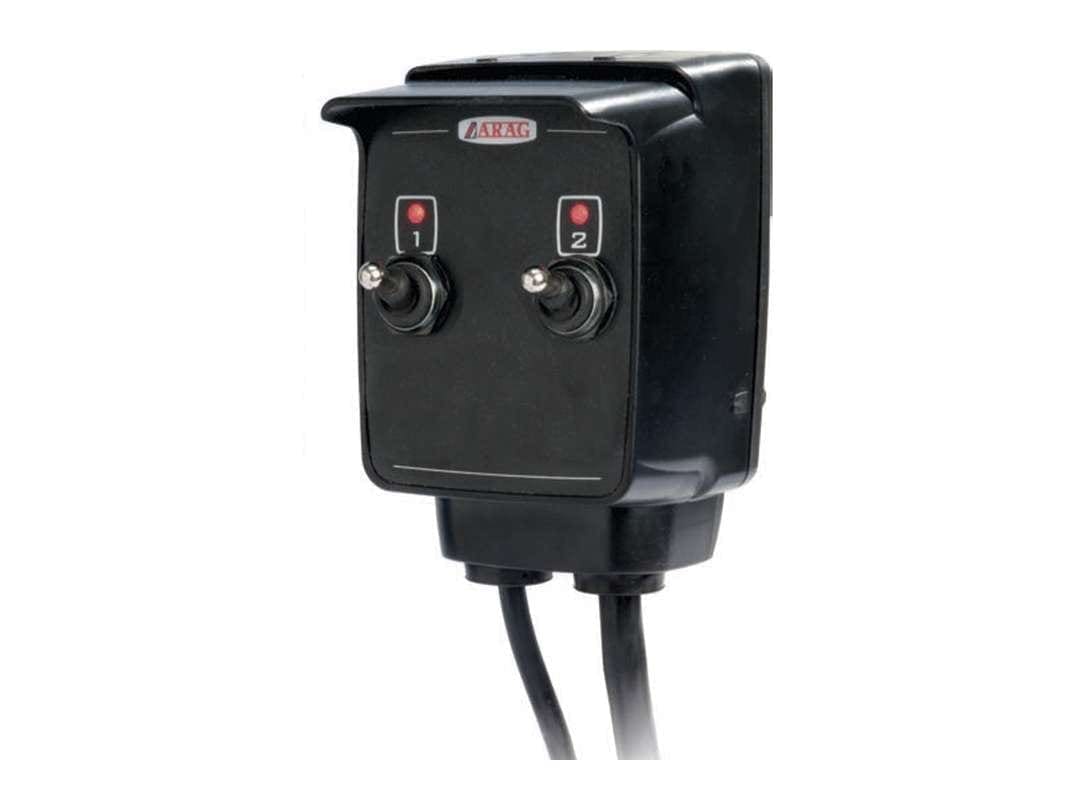

Electrical control 2 way with download

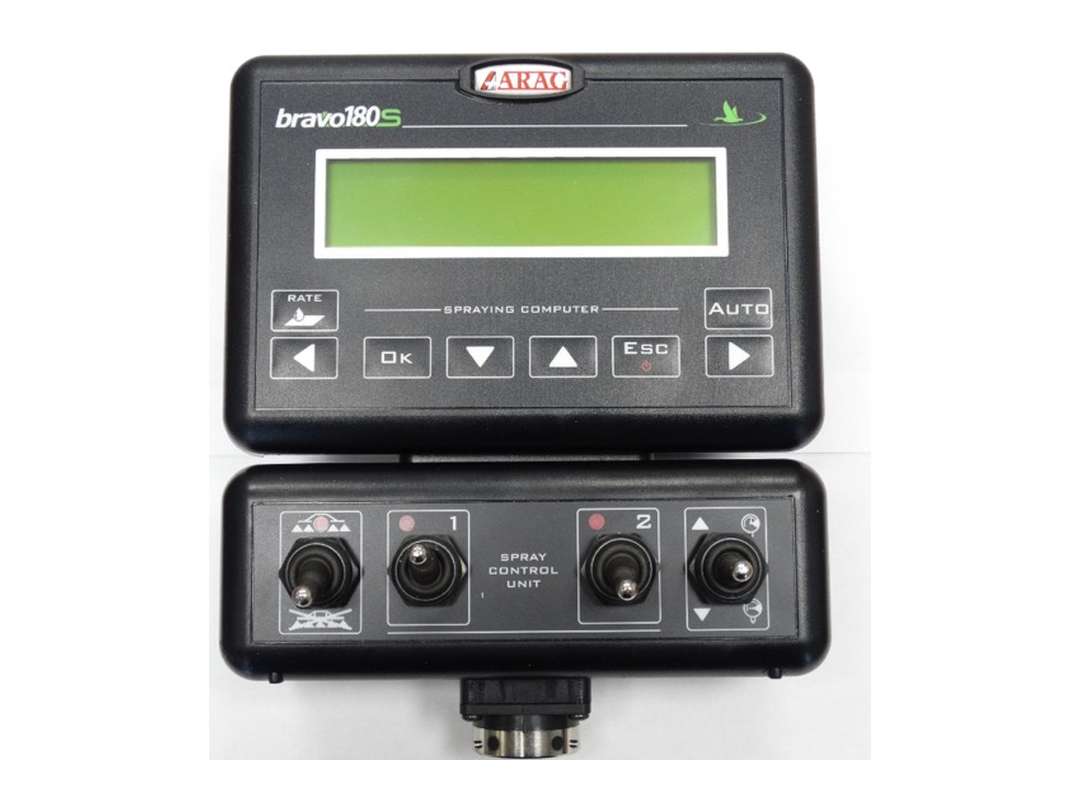

Bravo 180S 2 ways with Orion flow meter

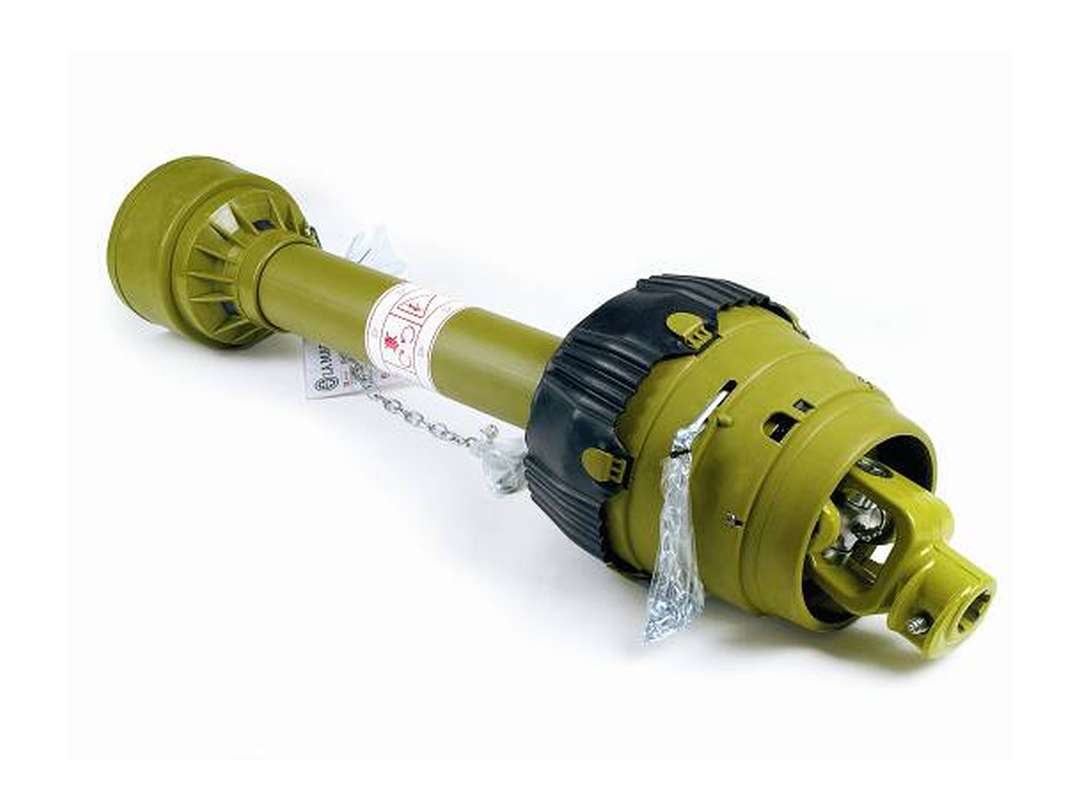

Homocinetic transmission
Product mixing tank (integrated)
Leaf spring suspension on chassis
Wheels
Approved V-directional launch
Electrical control increase 2-way with volumetrics

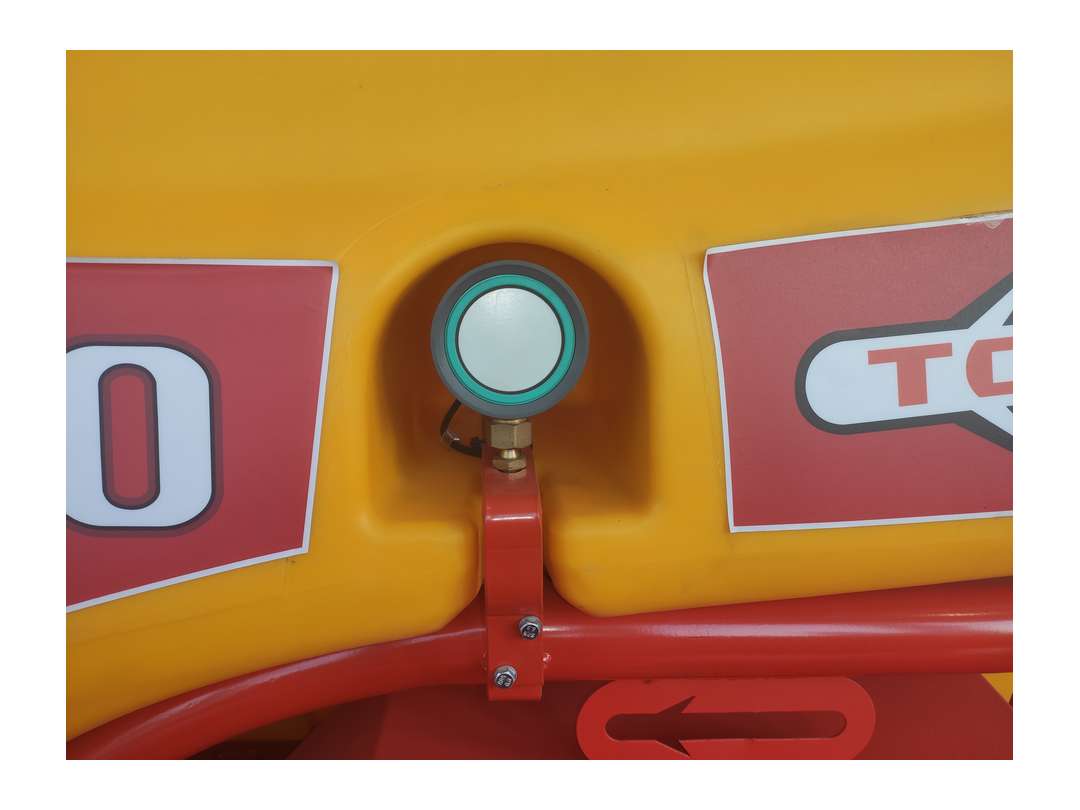

Sonar for atomizer
“V” deflector
Side tray atomizer 1000, 1500 and 2000 L
Upper rack
Alfa control (GHR) ready for sonar

valvula reguladora de carga 1

lanza direccional boca pez 1

caja de mando para portaboquillas 4668 2 vias 2

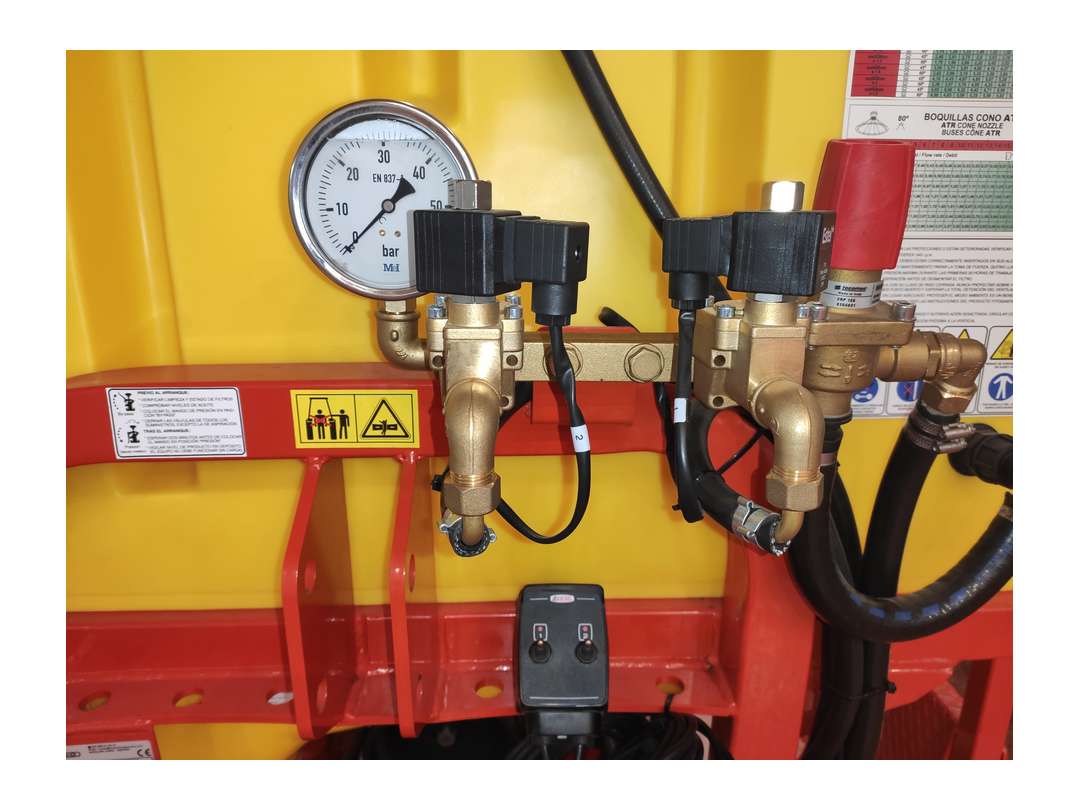

mando electrico de 2 vias con descarga 2

ordenador bravo 180 s 1

grupo de electrovaluvas de 2 vias con caudalimetro 1

transmision homocinetica 1

deposito mezclador de producto integrado 1

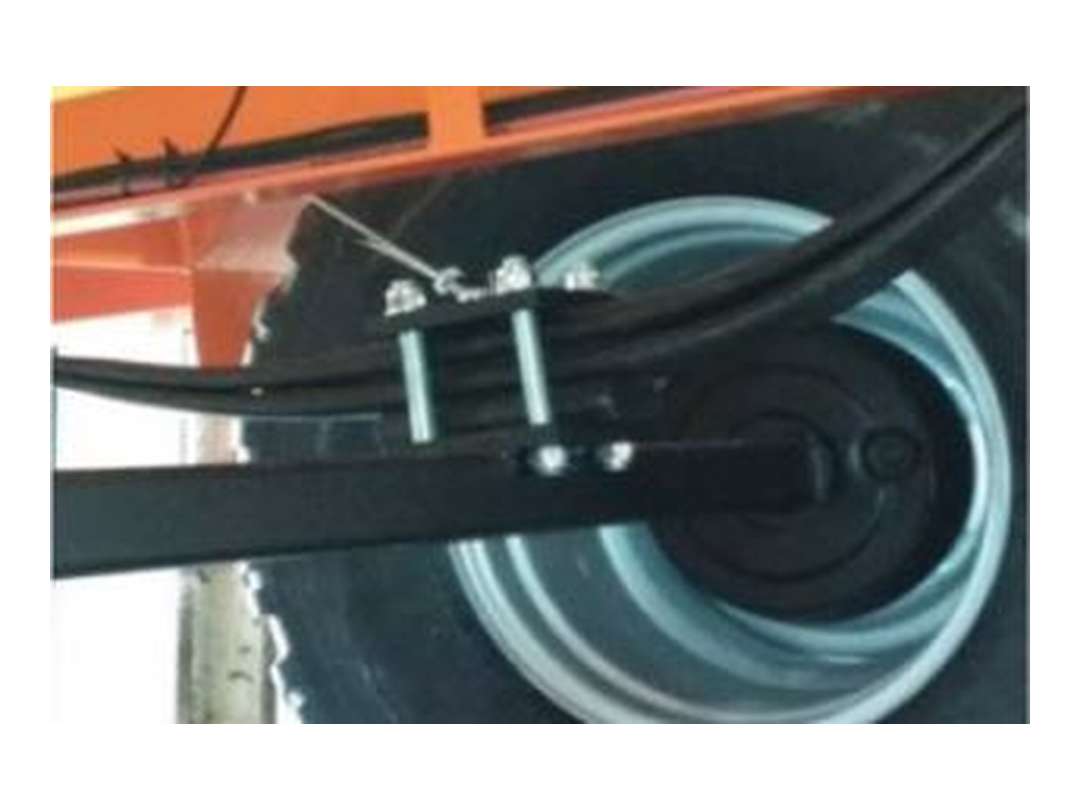

suspension de ballestas chasis 1

ruedas diferentes tamanos 1

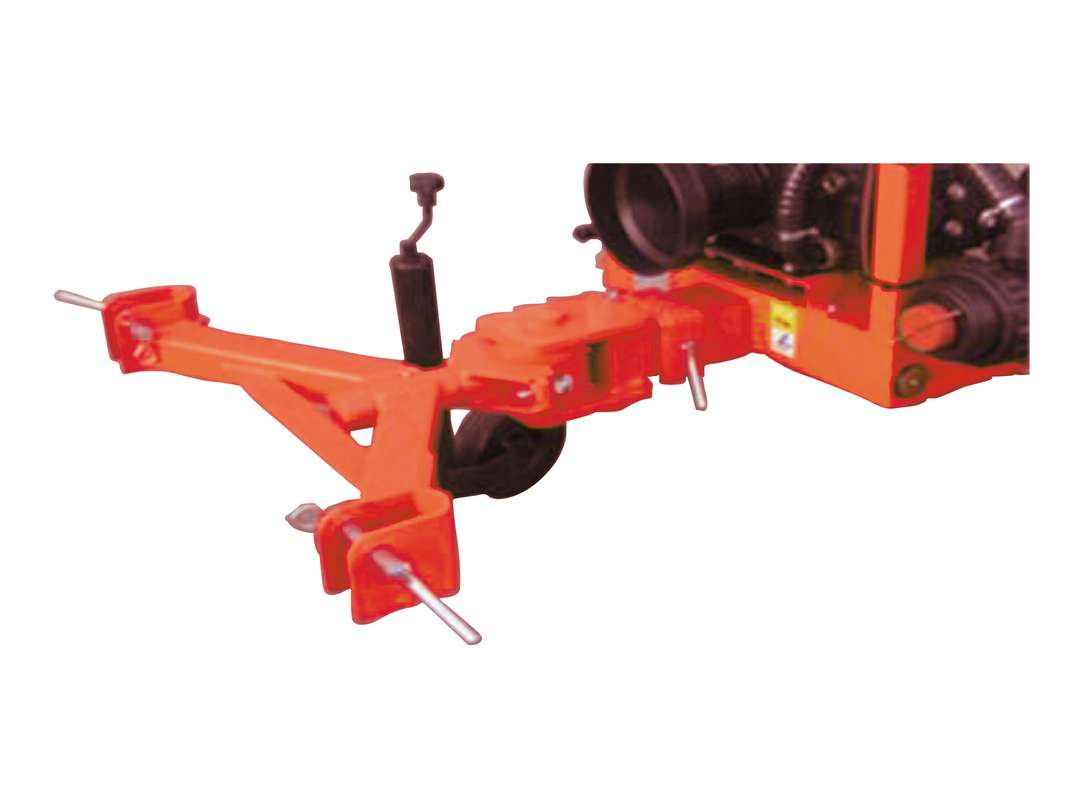

lanza direccional en v homologada 1

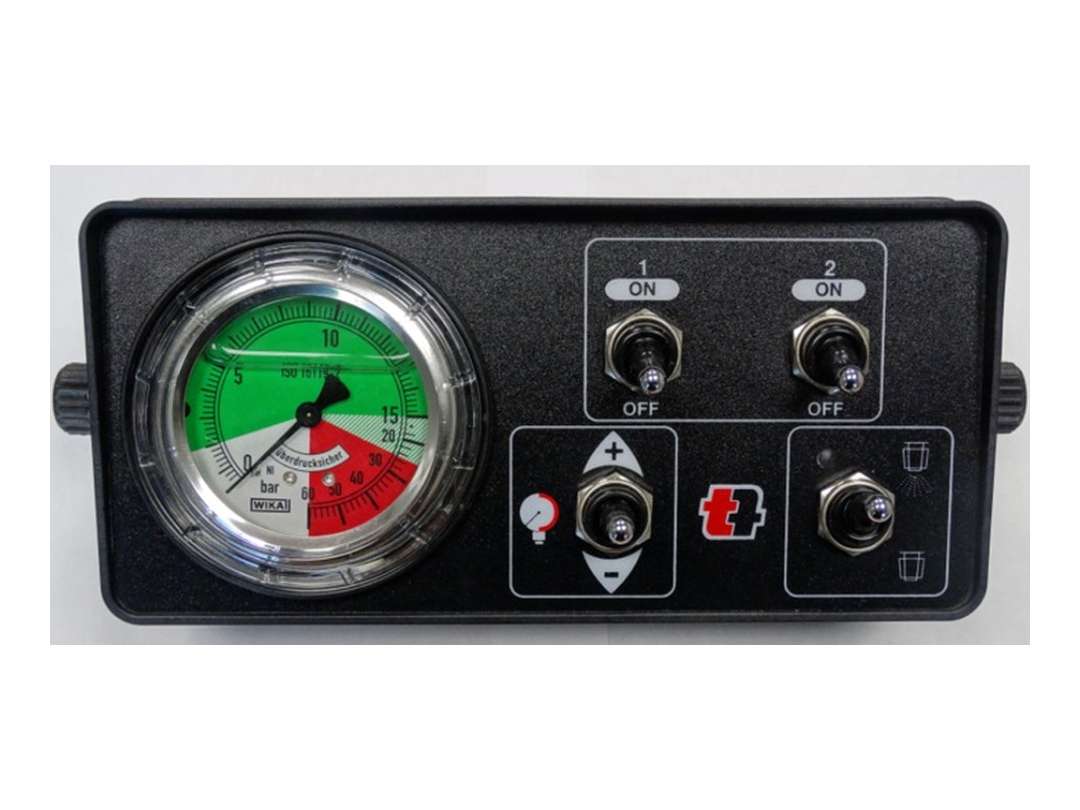

caja para mando electrico 2

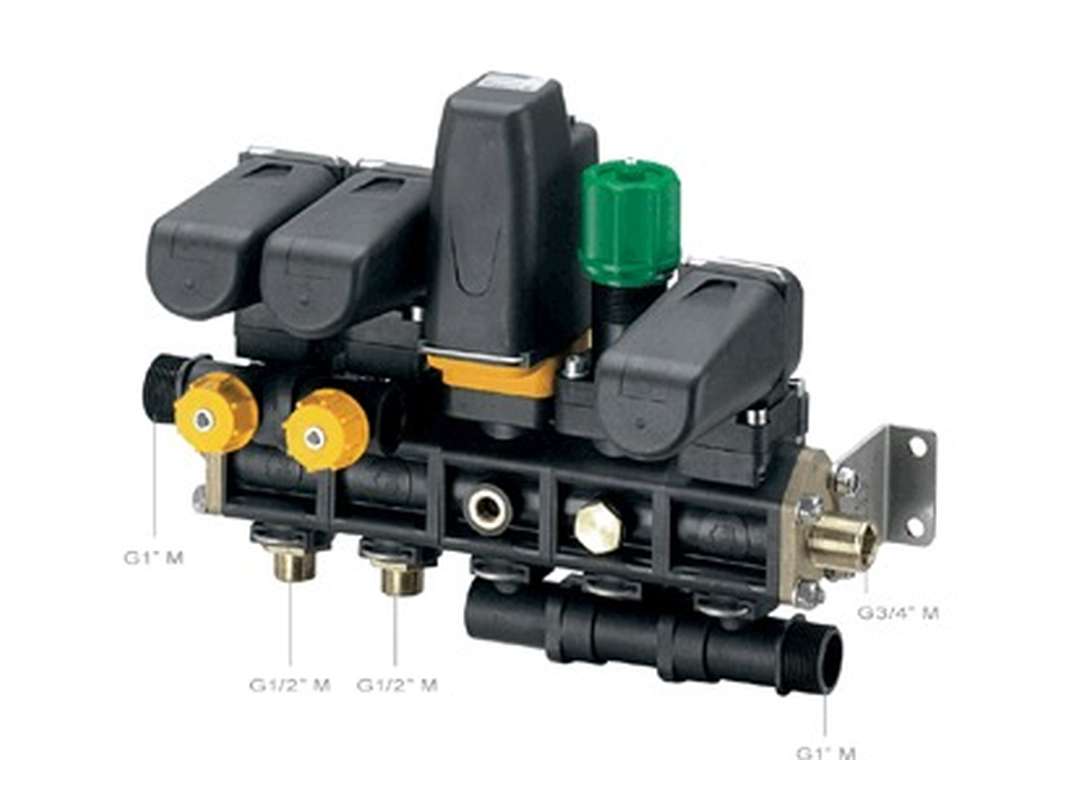

mando electrico de 2 vias con volumetricos 2

sensor sonar 2

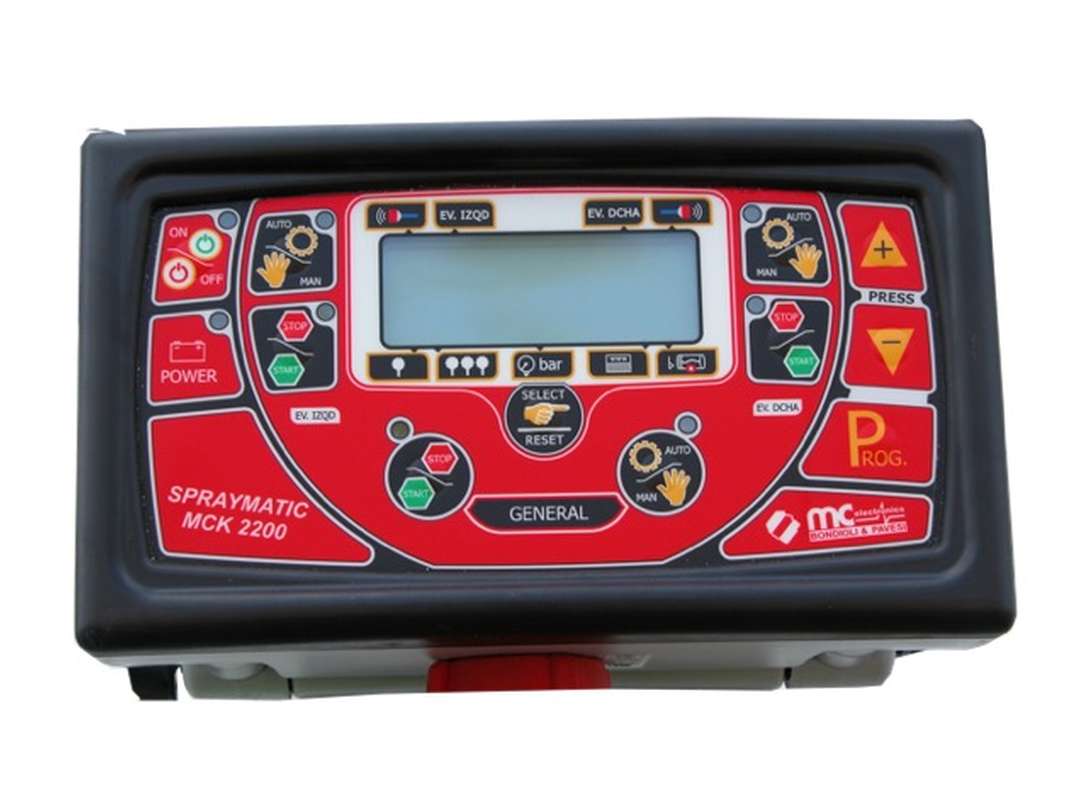

sonar 2

deflector en v 1

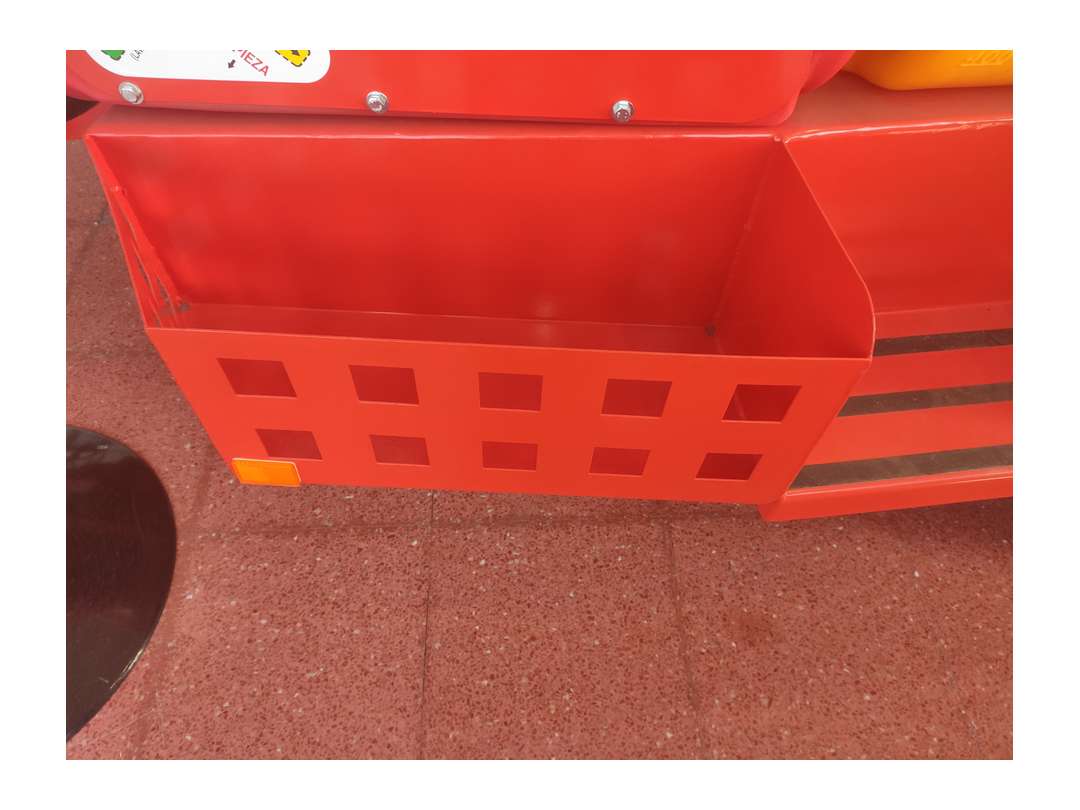

bandeja lateral atomizador 1

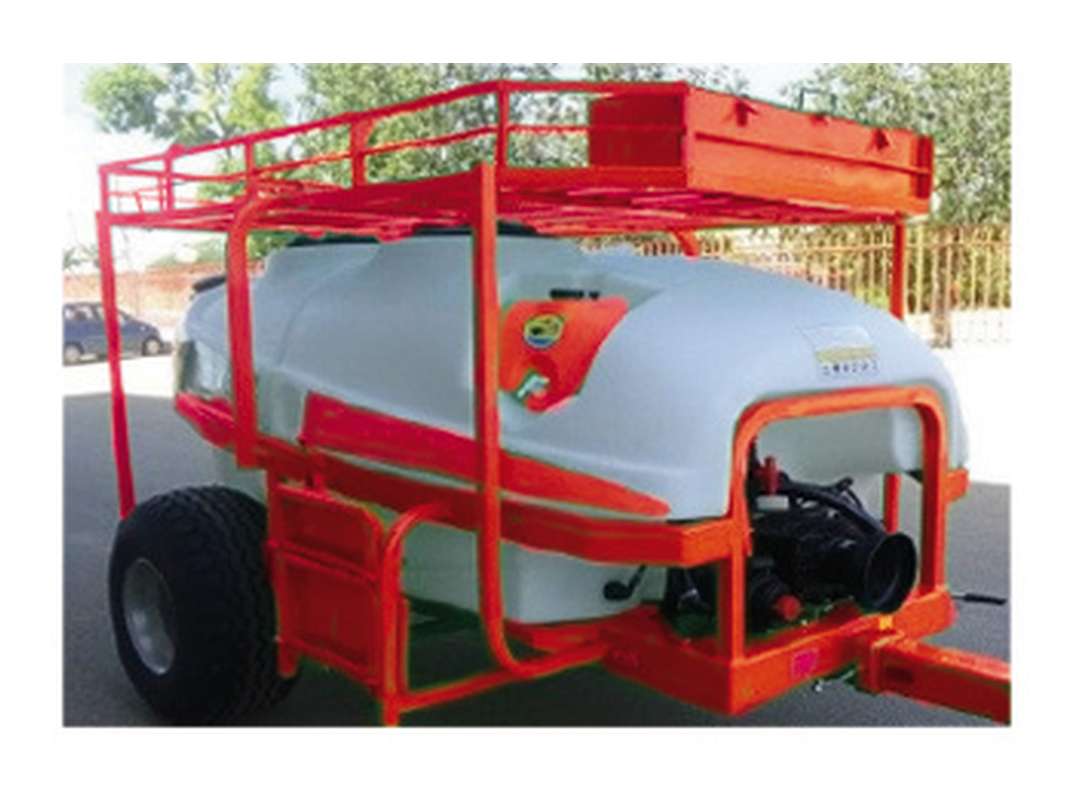

baca superior 1

mando de contol alfa 1

If you would like more information about Trailed atomizer Olive-trees, you can contact Technical Service of Torpedo Maquinaria.
