Super heavy discs harrows AP-400-T
Standard equipment
- Models with rigid frame, structural steel profile.
- Hydraulic control to open or to close indistinctly the cover crop.

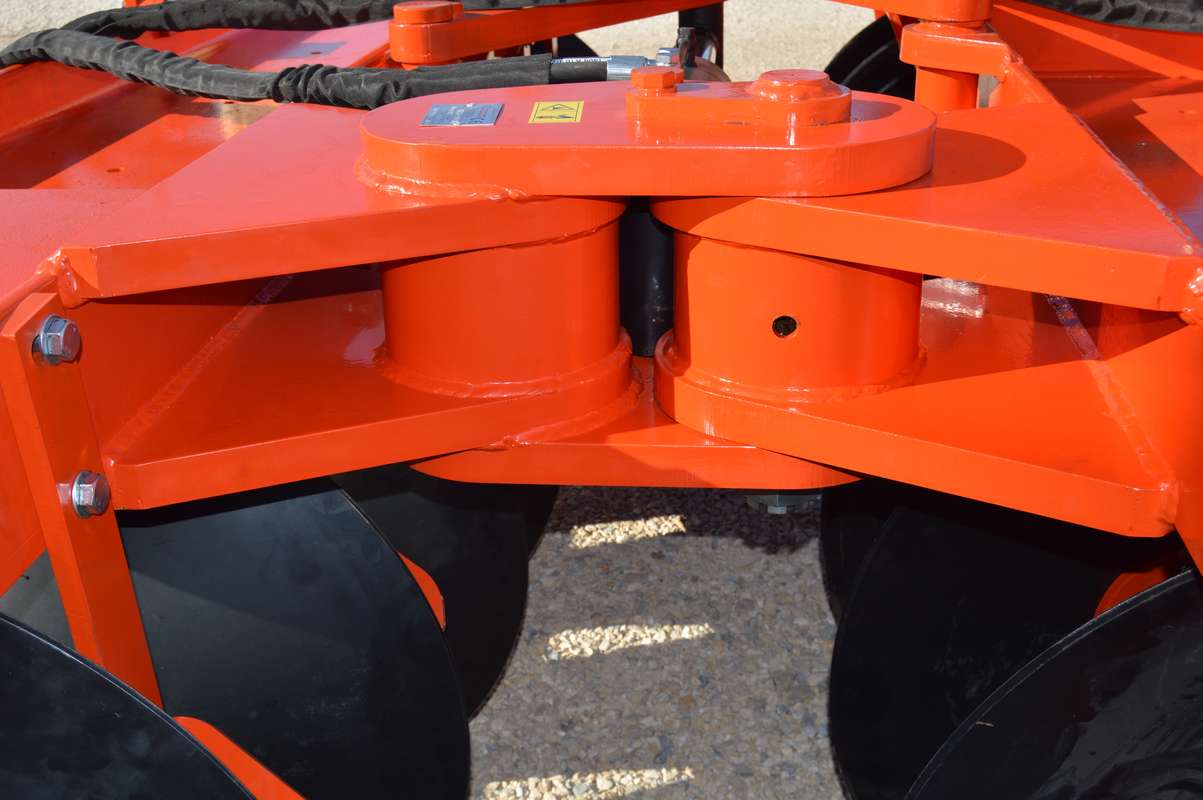

- Bearings system with oscilating bodies mounted on a 90 mm steel axle.
- Steel bodies bolted to each other.
Nota: It is a “SUPER HEAVY” disc harrow that is aimed at breaking the groung and doing the first tilling works.
Discs harrows AP-400-T (suitable for public roads)
|
CODE |
MODEL |
Discs |
WORK WIDTH (m) |
WEIGHT (Kg) |
POWER (CV) |
|||
|
Num. |
Diameter |
Separation |
Support point |
|||||
|
1011100001 |
AP-400-10-36 S/EQ.TTE-T |
10 |
36” - 91 CM |
40 cm. |
4 |
1,80 |
3600 |
200 |
|
1011100002 |
AP-400-12-36 S/EQ.TTE-T |
12 |
36” - 91 CM |
40 cm. |
8 |
2,20 |
4320 |
220 |
Discs harrows AP-400-T (NOT SUITABLE for public roads)
|
CODE |
MODEL |
Discs |
WORK WIDTH (m) |
WEIGHT (Kg) |
POWER (CV) |
|||
|
Num. |
Diameter |
Separation |
Support point |
|||||
|
1011100003 |
AP-400-14-36 S/EQ.TTE-T |
14 |
36” - 91 CM |
40 cm. |
8 |
2,60 |
5040 |
240 |
|
1011100004 |
AP-400-16-36 S/EQ.TTE-T |
16 |
36” - 91 CM |
40 cm. |
8 |
3,00 |
5760 |
260 |
|
1011100005 |
AP-400-18-36 S/EQ.TTE-T |
18 |
36” - 91 CM |
40 cm. |
8 |
3,40 |
6480 |
280 |
|
1011100006 |
AP-400-20-36 S/EQ.TTE-T |
20 |
36” - 91 CM |
40 cm. |
8 |
3,80 |
7200 |
300 |
Options
- Equipment of hydraulic rear transport
If you would like more information about Super heavy discs harrows AP-400-T, you can contact Technical Service of Torpedo Maquinaria.
