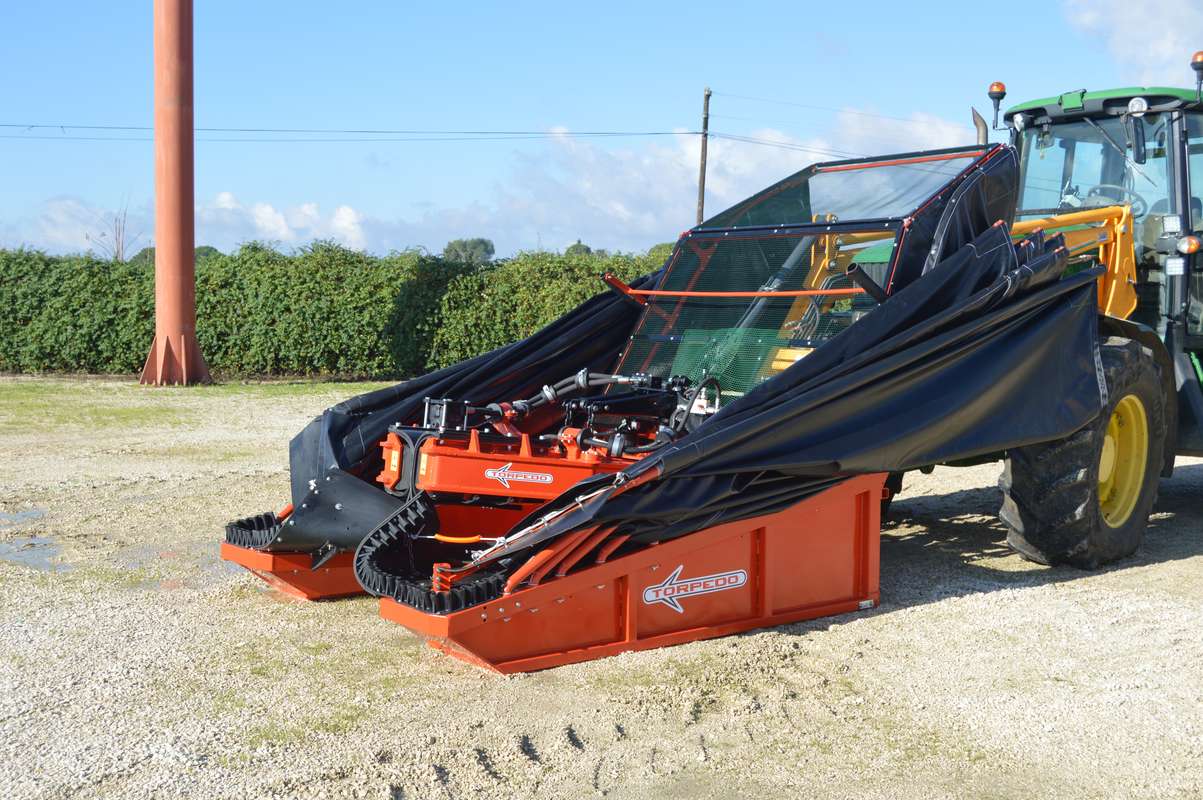

Olive harvester with front umbrella-box and monomass high frequency vibrating head for olive-trees, Serie 500
Standard equipment
- Hydraulic system of pistons.
- System of orbital multiple vibration in both directions.
- Elevation and transversal orientation of the head.
- Vibration control through cable.
- Umbrella and clamp opening movement simultaneously
- Independent umbrella opening regulation
- Quick system to hitch/unhitch quickly the harvesting box.
|
CODE |
MODEL |
PUMP CONTROL |
Protection grid for the tractor hydraulically adjustable. |
Tree entrance opening (m) |
UMBRELLA DIAMETER (m) |
MIN. POWER RECOMENDED (CV) |
|
1041010012 |
RS-90-6 |
Manual |
NO |
0,90 |
6 |
90 |
|
1041010001 |
R-A-110 F7 |
Sirga |
NO |
1,10 |
7 |
120 |
|
1041010003 |
R-A-110 H7 |
Sirga |
YES |
1,10 |
7 |
120 |
|
1041010002 |
R-A-110 F8 |
Sirga |
NO |
1,10 |
8 |
120 |
|
1041010004 |
R-A-110 H8 |
Sirga |
YES |
1,10 |
8 |
120 |
Options
- Reduce the opening of vibrating head
- Reinforced hydraulic cylinder on new front-loader (this option must be mounted in our factory)
- 400-mm extension of the vibrating head
- Protection piece of the hydraulic cylinder
- Tightening vibrating head adjustment kit
- Piece to reduce the opening width of the head VT-500
- Lateral movement of box and vibrating head
- Joystick
- Self-regulating pump instead of Sirgas
- Kit “young olive trees” PA-110
If you would like more information about Olive harvester with front umbrella-box and monomass high frequency vibrating head for olive-trees, Serie 500, you can contact Technical Service of Torpedo Maquinaria.
